Size Reduction Equipment

Root Crusher

By:Ms Season Tian
Jul 07, 2015

Our ZCGF series Wood Crusher suites for crushing the huge wood root into small wood chips less than 10cm, which can be grinded into sawdust. With compact designing and integrating the chipping, cutting, the wood root shredder can also crush slab, film faced plywood, waste wood, brush wood and son efficiently into small slice raw materials.
The mobile wood root shredder can be driven by both of the electric motor and diesel engine. It can be moved by tractors or other traction for field operation. The wood root crusher can be remote controlled with 80m, which can guarantee the operator’s safety.

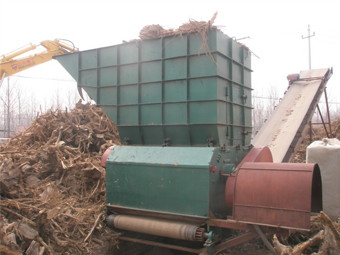

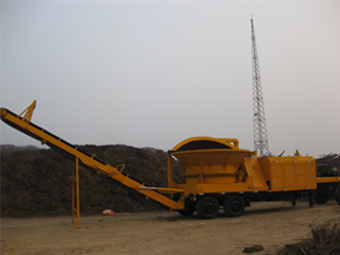

Photos of the root crusher:

wood root crusher
Root crusher


Technical Parameters:

Model Capacity (MT/H) Power (KW) Size (mm) Weight (MT) Rotate Speed of Main Shaft (rpm) Max. Raw Material Φ (mm)
ZC3000A 15-35 315 7500X2550X3600 13.6 1500 2300
ZC3000B 13-35 280+18.5 7000X2350X3400 14.6 1600 2300
ZC5000A 20-40 397 9900X2550X3600 18.6 2000 2400
ZC5000B 15-40 308 7500X2550X3600 13.6 1500 2300

Crushed wood root:

wood root crushed
Root crushed
Root crushed
