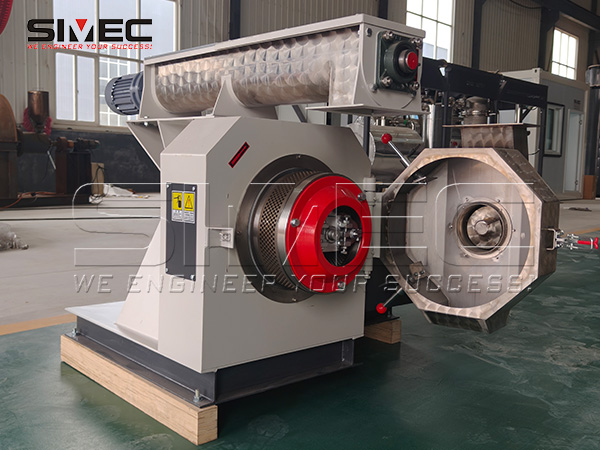

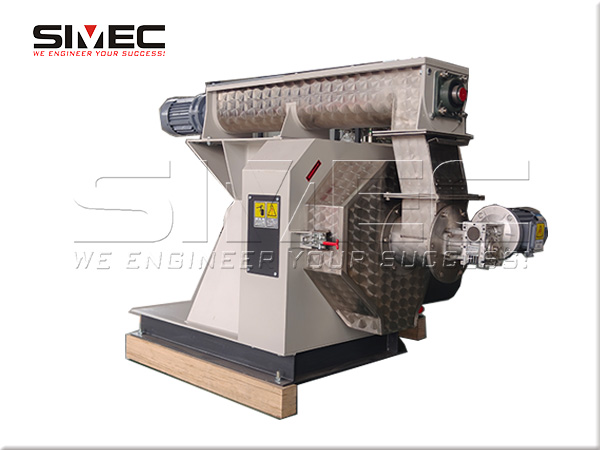

SPM250 Biomass Pellet Mill

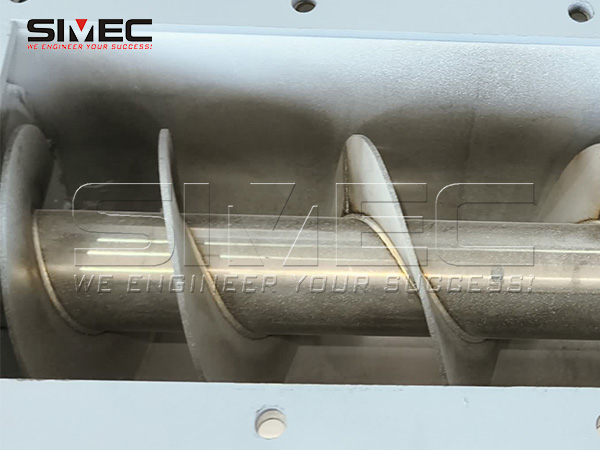

The SPM250 biomass pellet mill is engineered for bench-scale production, pellet formulation R&D and household applications. The pelletizer consists of a screw feeder, a force feeder, machine frame, belt transmission system, ring die and adjustable press roller assembly. The screw feeder, force feeder and pelletizing chamber are all made of stainless steel.
The SPM250 biomass pellet mill is applicable to various agricultural and forestry residues, including wood sawdust, sugarcane bagasse, peanut shell, coffee parchment, rice husk, crop straw and more. Raw materials enter the rotating feeding tray through the inlet. Driven by centrifugal force, materials are thrown evenly onto the inner wall of the ring die and form a uniform annular material layer. The material is then conveyed to the contact surface between ring die and press roller. Under strong extrusion, materials are extruded into cylindrical pellets through die holes, and finally cut into uniform-length pellets by the fixed cutter.
Model: SPM250
Screw Feeder: 0.75 kW
Force Feeder: 0.37 kW
Main Motor: 22 kW
Diameter of Ring Die: 250 mm
Capacity: 100-200 kg/hour
Overall Dimensions: 1300 x 1250 x 980 mm
Weight: 600 kg
Technical features:
1. Main shaft and hollow shaft are forged from premium materials and processed by high-precision CNC machining.

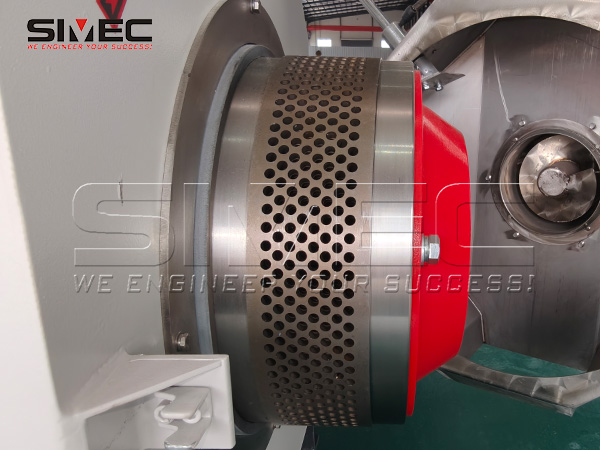

2. Stainless steel ring die is fabricated with advanced technology for extended service life.
3. High torque and high compression design ensures superior pellet forming quality.
4. Pulley replacement enables rotational speed adjustment to adapt to diverse raw materials and optimize pellet quality.
5. Optimized roller structure lowers operating temperature and adopts double sealing design.
