Palm EFB Fine Pulverizing Machine to Malaysia

By:Mr Darren Chen
Position:Project Sales Director
Jan 08, 2024
A 20’GP container loaded with palm EFB fine pulverizing line was shipped to Port Klang, Malaysia in August 2021. As per client’s requirements for experimental purpose, SIMEC tailored this production line to make fine powder from palm EFB fiber. It is divided into two processing units, Dry Pulverizing System and Wet Milling System.

In dry pulverizing system, palm EFB long fiber is directly converted into 50 mesh powder through integrated coarse grinding & pulverizing system. Then, in wet milling system, the dry EFB powder is blended with demineralized water and further milled by a colloid mill. Consequently, emulsified and homogenized EFB slurry product will be obtained.

If this experimental project passes verification of client, SIMEC will provide customized, large scale commercial production line in the near future.

All the machines were loaded in one 20’GP container. Please refer to the photos and packing details for more information.

Coarse grinder and fine pulverizer

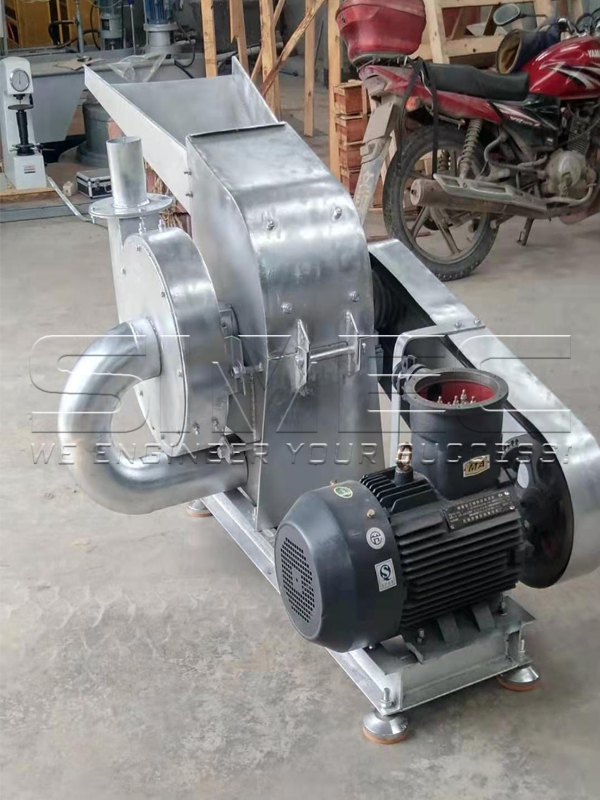

Palm EFB Coarse Grinder

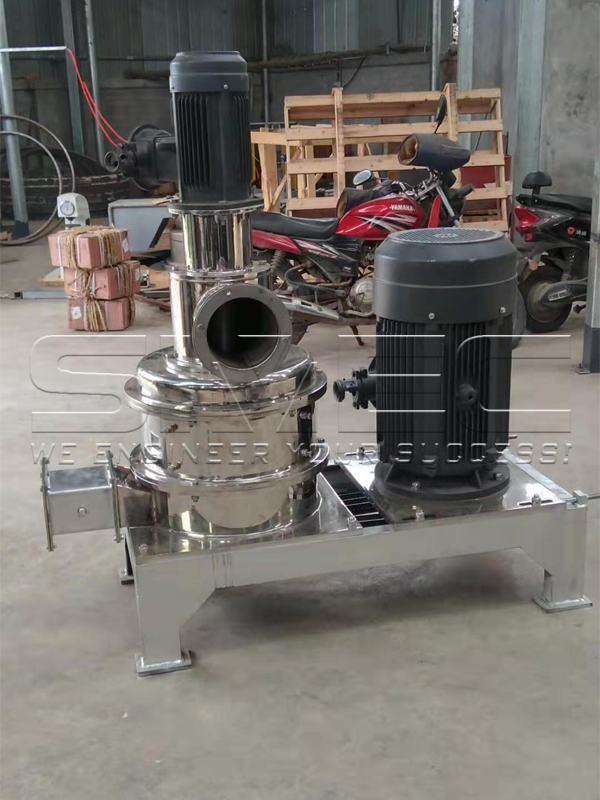

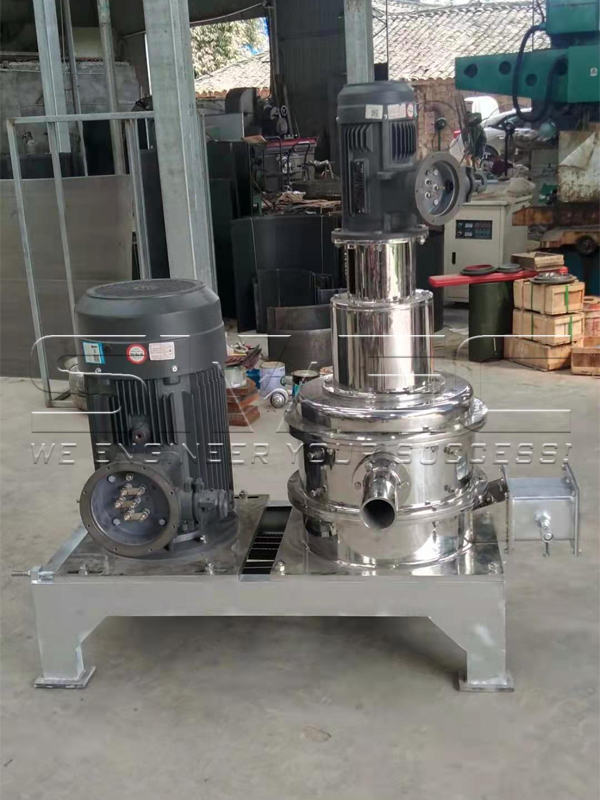

CGFP40 Pulverizer

CGFB40 Palm EFB Pulverizer


Pulse dust collector, cyclone and fan

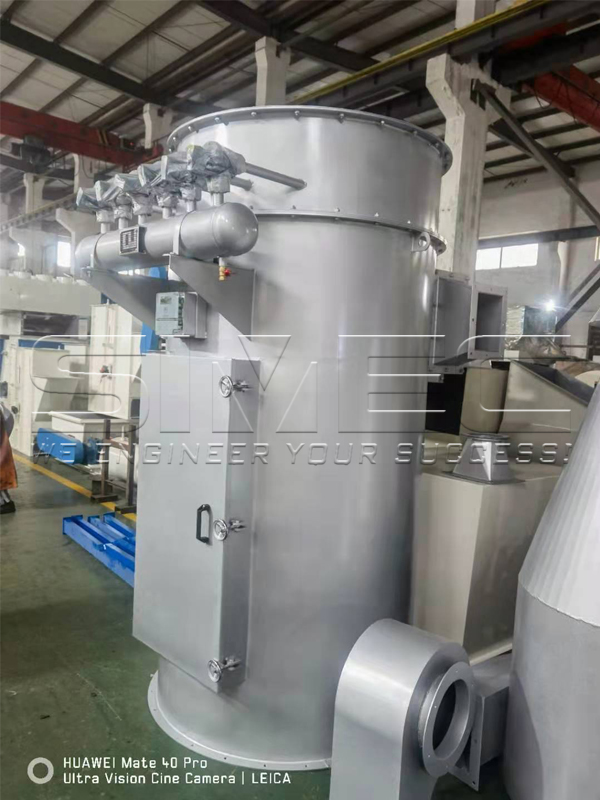

Pulse Dust Collector

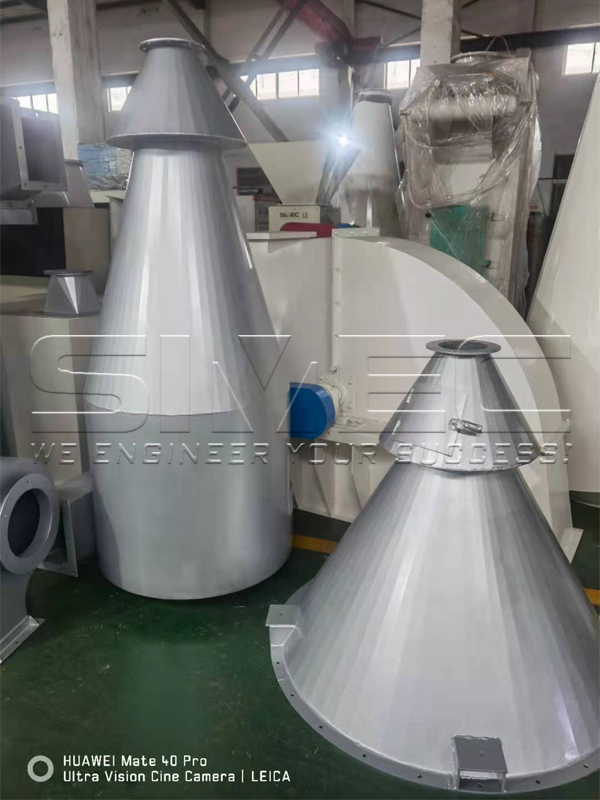

Cyclone 4

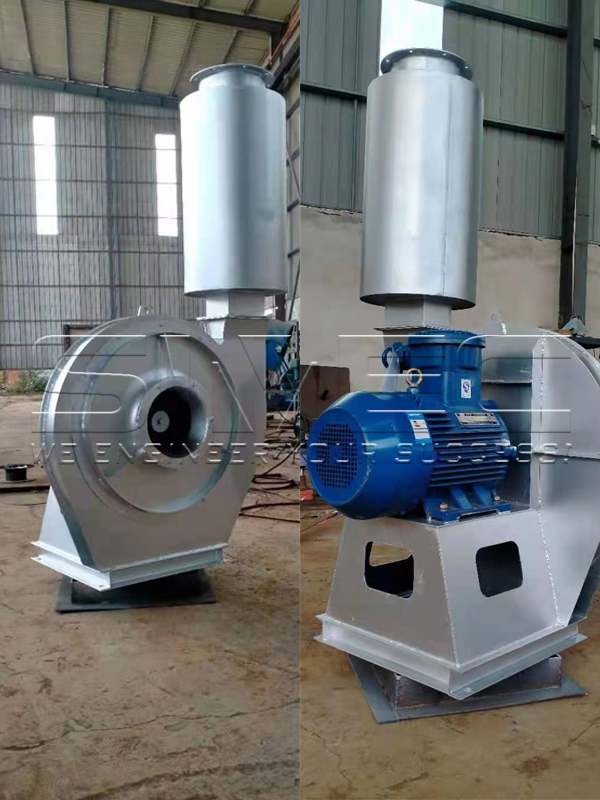

Fan Muffler


Colloid miller, Mixer tank and progress cavity pump

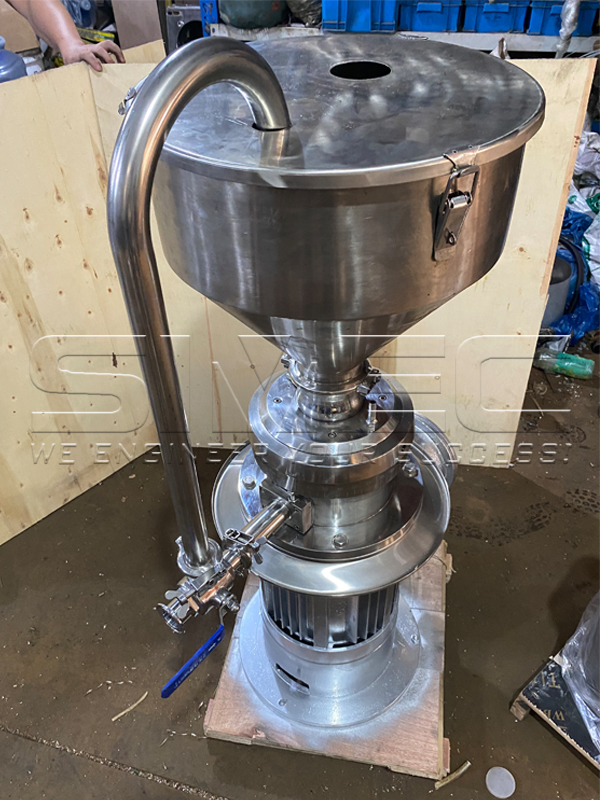

Palm EFB Colloid Mill

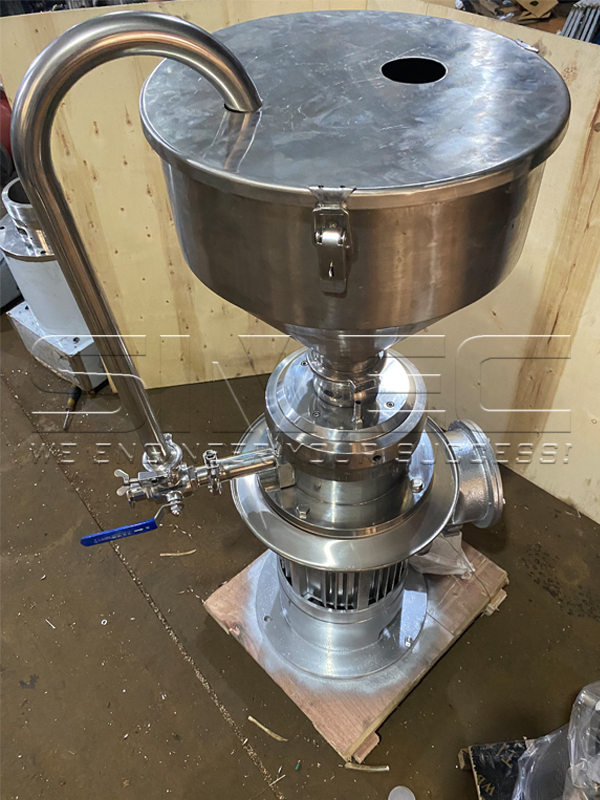

Palm EFB Colloid Grinder

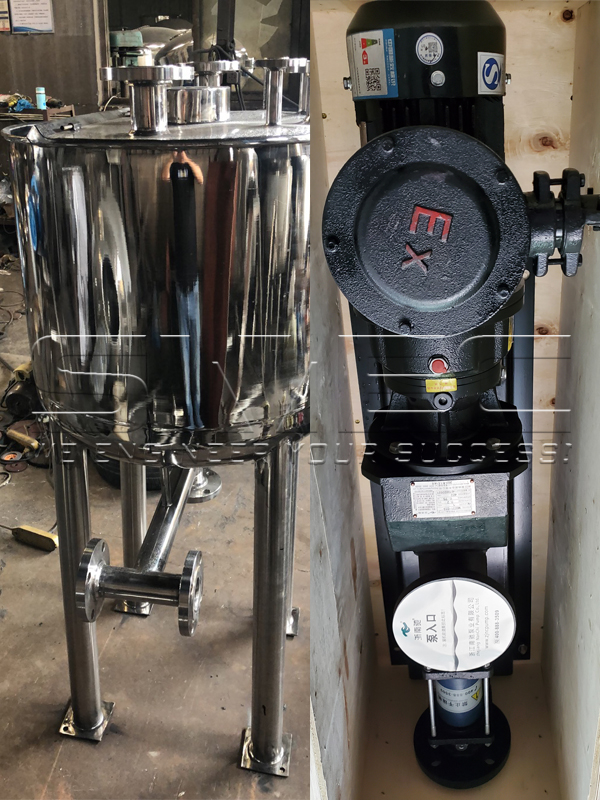

Powder Mixer Cavity Pump


Ex Control Cabinets

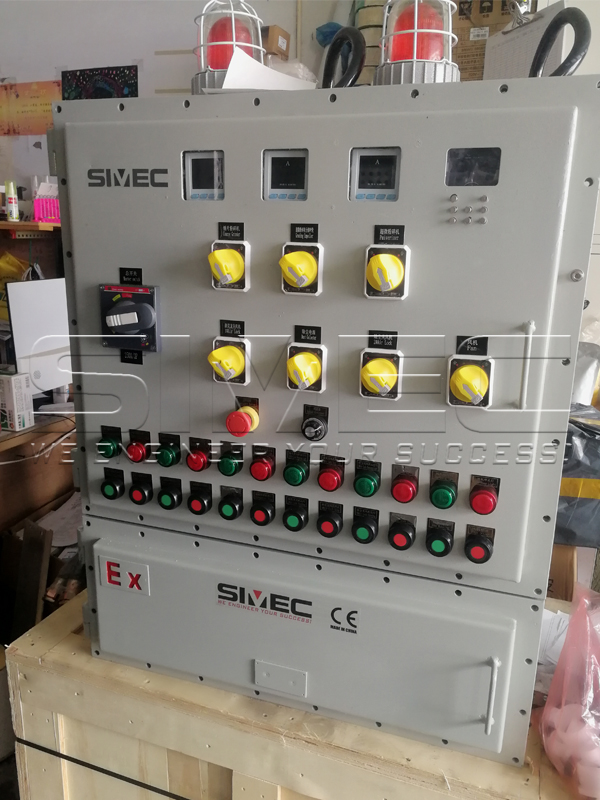

Explosion Proof Control Cabinet

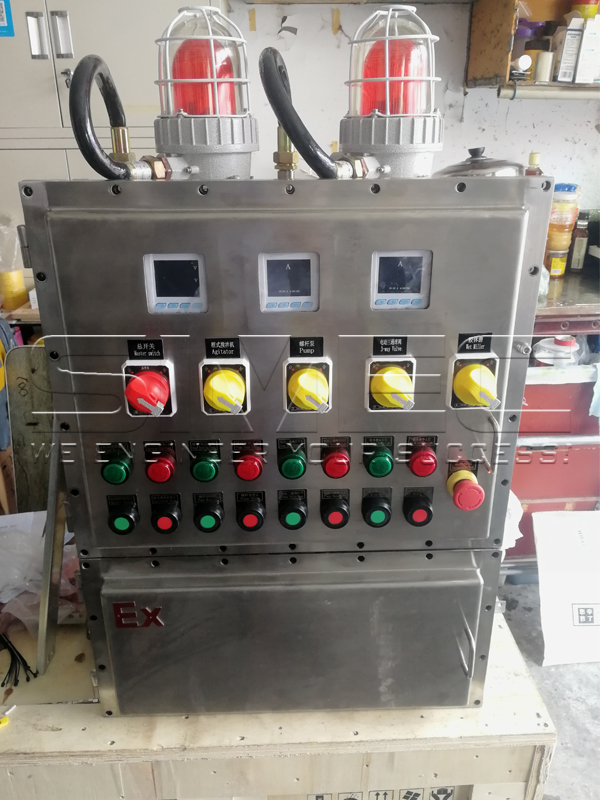

Stainless Steel Explosion Proof Control Cabinet

Packing Details:
No. Packing Dimensions
（L*W*H）		 Volume
(m³)		 Net Weight
(kgs)		 Gross Weight
(kgs)		 Packing Details
SIMEC
01		 510*590*1050
mm		 0.31 140 150 Wet Miller*1, Rotor*2, Stator*2, Sealings*2
SIMEC
02		 2400*2100*1530
mm		 7.71 650 700 Pulse Dust Collector*1, Bend*4, Pipes*3, Dust Collector Supporting Legs*4, Short Supporting Leg*4
SIMEC
02		 1100*1100*1100
mm		 1.331 250 290 Fan*1, Mufflers*2, Bend*1
SIMEC
04		 900*700*800
mm		 0.5 271 350 Air Lock*2, Flanges ASME DN250*1
SIMEC
05		 1160*1130*700
mm		 0.92 185 230 Coarse Grinder (without motor)*1, Motor Belt Pully, Key*1, Belt*5, Hammers*2 sets, Soft Hose*1
SIMEC
06		 1400*1200*950
mm		 1.6 480 560 Pulverizer (without motors), Main Motor Belt Pulley*1, Key*1, Belt*5, Motor Rubber Gasket for Grading Impeller*1, Key*1, Inlet*1, Tooth Ring*2, Knives*2 sets.
SIMEC
07		 1150*370*520
mm		 0.22 96.7 106.7 Progressive Cavity Pump*1, Pipes(02)*1
SIMEC
08		 750*650*500
mm		 0.24 56 73 Electric 3-way Valve*1, Manual Valve*3, Agitator Motor*1, Bolts & Sealing Gasket*1 set, Pipes*2
SIMEC
09		 700*925*1770
mm		 1.15 80.5 82 Mixing Tank*1, Pipes(03)*1
SIMEC
10		 1790*500*225
mm		 0.2 16 17 Pipe(01)*1
SIMEC
11		 2000*1250*2150
mm		 5.375 170 200 Cyclone*1, Cone hopper*1, Square to Round*1
SIMEC
12		 1350*960*640
mm		 0.82944 180 190 Dry milling system control cabinet
SIMEC
13		 1330*740*470
mm		 0.46257 154 164 Wet Milling System Control Cabinet*1, Bolts & Nuts for DN200 and DN250 ASME flanges;
Total Amount 20.855 2729.2 3112.7








































Release date: 2021-08-30
