Chicken Manure Pellet Plant Delivery to Turkey

By:Dominic Meng
Position:Project Sales Director
Dec 26, 2023
Chicken manure pellet plant consists of storage silo, cake breaker, conveyors, SPM420 pellet mills, pellet cooler, pellet sieve, control cabinet, etc. The complete production line is designed to pelletize dry chicken manure at 15~20% moisture, mixed with 10~15% sawdust and rice husks. Diameter 8mm pellets will be used as feedstock of gasification reactor for power generation. Pellet form raw material can greatly improve the produce gas yield of gasification facility.

All the cargos were delivered from SIMEC in the first week of August, 2020. In total 4 pieces of 40'HQ containers and 1 piece of 20'GP container are stuffed. Sailing date 8th August, 2020, from Shanghai port to Bolu, Turkey, 28 days shipping period.

Equipment Package:

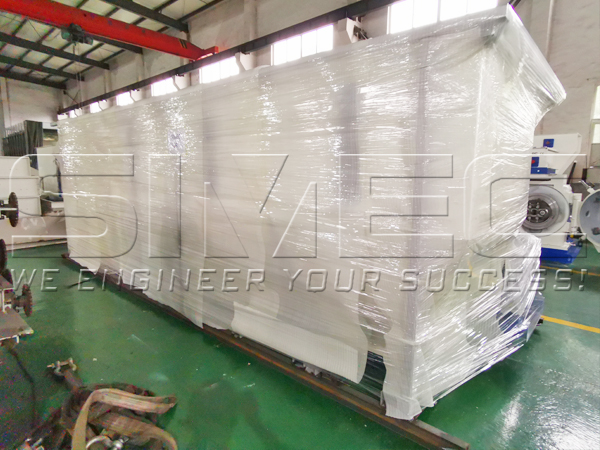

Packed Equipment for Turkey

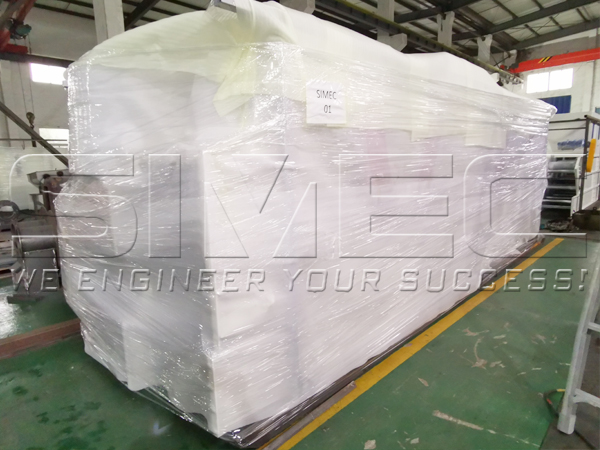

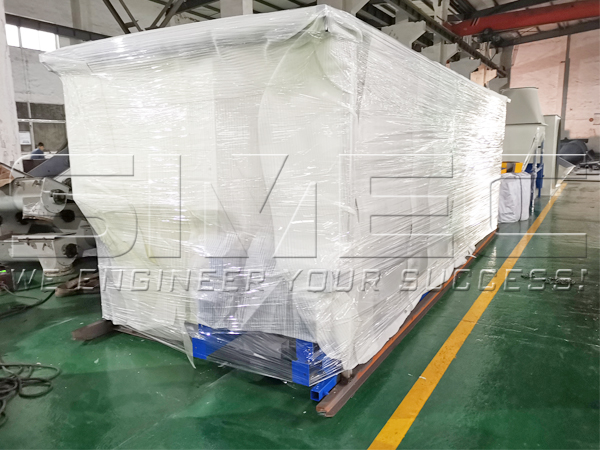

Packed Machine for Turkey

Packed Equipment for Turkey

Main Equipment:
SPM420 pellet mills.

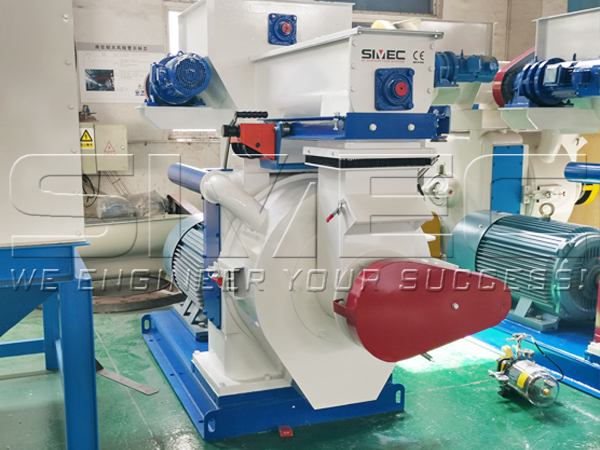

SPM420 Pellet Mill for Turkey 2020

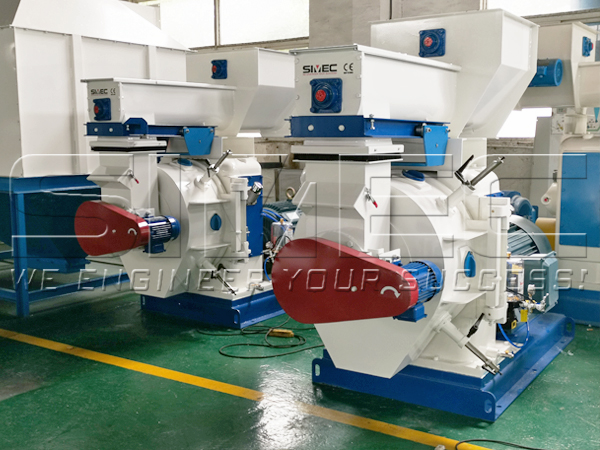

SPM420 Pellet Machine for Turkey

SPM420 Pellet Mill for Turkey

SKLN14x14 pellet cooler, pellet sieve, hoppers.

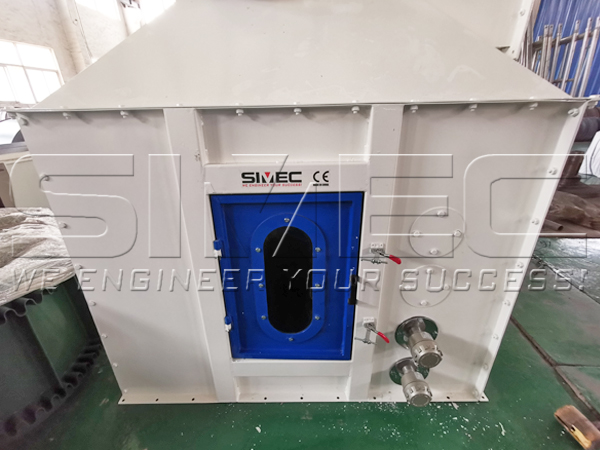

Manure Pellet Cooler

Manure Pellet Sieve

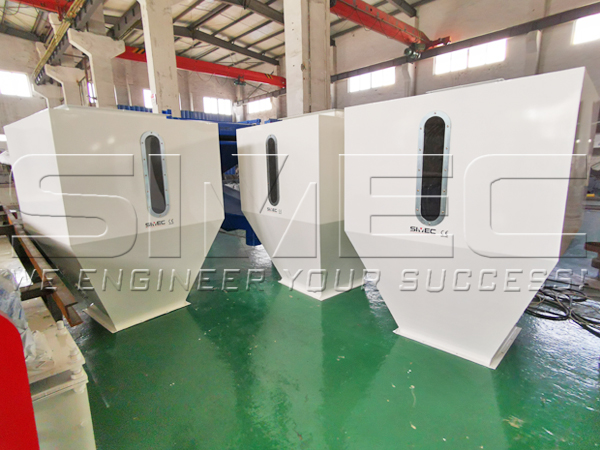

Hoppers

Screw conveyors, cake breaker.

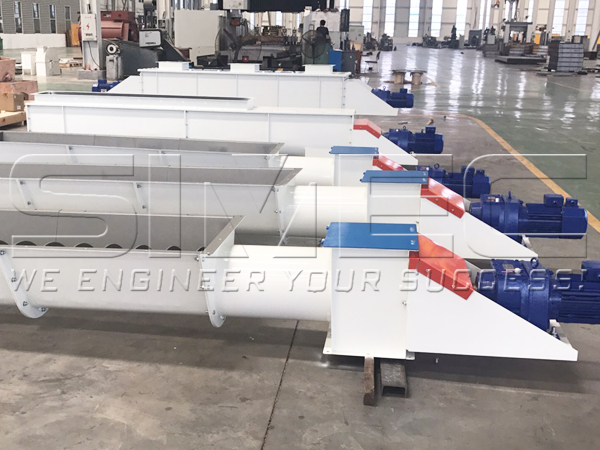

Raw Material Mixer

Screw Conveyor for Turey

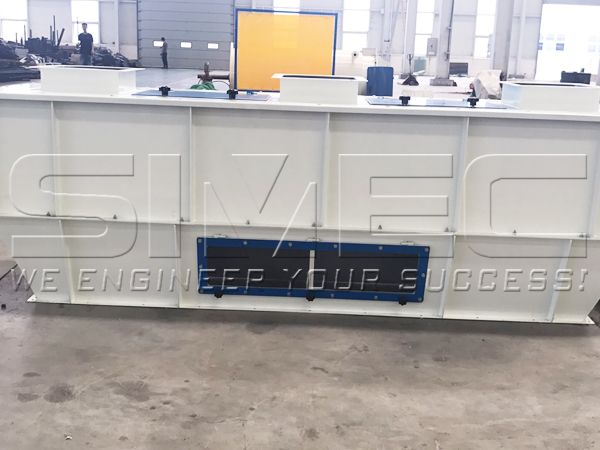

Cake Breaker

Packing Details:
No. Overall dimensions Weight Packing Details
SIMEC 01 7000*2100*2300mm 4.7t 10.5 m Y-type belt conveyor (including hopper and seal cover);
6.6 m U-type 40 auger;
7 m apron conveyor (including seal cover);
3 pcs of square feeding tube;
Z-type apron belt;
10 m apron belt (including hopper);
4 pcs of 4228 mm 10# square tubes, 2 pcs of 6300 mm 10# square tubes, 2 pcs of 6100 mm 10# square tubes, 2pcs of 6300 mm 5# steel angles, 1 pc of 6100 mm 5# steel angle, 2 pcs of 5513 mm 30# steel rods; dust collector (including 12 cloth bags);
air compressor filter, air compressor;
SIMEC 02 6500*2100*2200mm 1.9t Vibrating screen;
1000 cyclone (including frame); gasholder;
1 pc of square round reducer;
fan;
cyclone air lock,
cooler feeding hopper;
SIMEC 03 6050*2100*2050mm 2.4t 3 pcs of material storage bins; conveyor landing legs;dust collector frame; cooler;
6 pcs of 1600 mm 10# square tubes, 6 pcs of 1300 mm 10# U-bars, 1 pc of 1800 mm 5# steel angle, 15 pcs of 1200 mm 5# steel angles, 2 pcs of 215 mm 5# steel angles, 6 pcs of 1300 mm 5# steel angles, 6 pcs of 290 mm 5# steel angles, 2 pcs of 2180 mm 4# steel angles, 24 pcs of 1560 mm 4# steel angles, 4 pcs of 200*200*10 mm steel plates, 2 pcs of 100*150*10 mm steel plates, 2 pcs of 1800*300*3 mm checkered plates, 3 pcs of 1300*400*3 mm checkered plates, 3 pcs of 1300*100*3 mm checkered plates, 2 pcs of 1800*900*3 mm checkered plates, 17 pcs of 670 mm 30# steel rods, 3 pcs of 285 mm 30# steel rods, 6 pcs of 1980 mm 30*3 steel flats.
SIMEC 04 990*950*960mm 1.26t 60 pcs of roller shells;
6 pcs of roller assemblies;
1 bag of screw;
1 pc of stop valve;
6 pcs of level indicators;
12 rolls of single-sided adhesive(5m);
2 pcs of hoops;
1 pc of cloth bag;
3 tool boxes;
3 pcs of grease guns;
1 pack of gasholder accessories
SIMEC 05 2850*1300*2100 3.3t 1 set of pellet mill;
1 set of pneumatic greasing machine
SIMEC 06 2850*1300*2100 3.3t 1 set of pellet mill;
1 set of pneumatic greasing machine
SIMEC 07 2850*1300*2100 3.3t 1 set of pellet mill;
1 set of pneumatic greasing machine
SIMEC 08 585*585*330 135KG SPM420 Ring Die
SIMEC 09 585*585*330 135KG SPM420 Ring Die
SIMEC 10 585*585*330 135KG SPM420 Ring Die
SIMEC 11 585*585*330 135KG SPM420 Ring Die
SIMEC 12 585*585*330 135KG SPM420 Ring Die
SIMEC 13 585*585*330 135KG SPM420 Ring Die
SIMEC 14 585*585*330 135KG SPM420 Ring Die
SIMEC 15 585*585*330 135KG SPM420 Ring Die
SIMEC 16 585*585*330 135KG SPM420 Ring Die
SIMEC 17 585*585*330 135KG SPM420 Ring Die
SIMEC 18 585*585*330 135KG SPM420 Ring Die
SIMEC 19 585*585*330 135KG SPM420 Ring Die
SIMEC 20 585*585*330 135KG SPM420 Ring Die
SIMEC 21 585*585*330 135KG SPM420 Ring Die
SIMEC 22 585*585*330 135KG SPM420 Ring Die
SIMEC 23 2760*1620*1180 930 Side board 01: 4 pcs = 492 kg;
side board 02: 4 pcs = 416 kg
SIMEC 24 3000*1150*1960 322 Discharging hopper: 2 pcs = 282 kg
SIMEC 25 3030*1190*1600 684 Discharging hopper: 1 pc = 141 kg;
roof: 2pcs = 252 kg;
waling 02: 4 pcs = 116 kg;
roof waling: 1 pc = 31 kg;
auger landing leg: 2 pcs = 86 kg
SIMEC 26 4200*1200*630 580
Landing leg waling: 4 pcs = 100 kg; waling 01: 4 pcs = 104 kg;
landing leg inclined strut:4 pcs=32kg;
landing leg: 4 pcs = 300 kg
SIMEC 27 4500*810*1160 765 Cake breaker: 1 set = 734 kg
SIMEC 28 4700*600*1060 675 U-type 40 auger: 1 set = 612 kg;
plate filter: 6 pcs;
level indicator: 2 pcs;
sealing rubber pad: 1 pc
SIMEC 29 4500*710*630 462 30 round auger: 1 set = 428 kg
SIMEC 30 4500*710*630 462 30 round auger: 1 set = 428 kg
SIMEC 31 4500*710*630 462 30 round auger: 1 set = 428 kg
SIMEC 32 1300*900*2400 0.45 Control cabinet

Other Parts and Equipment:
Ring dies, rollers & shells.

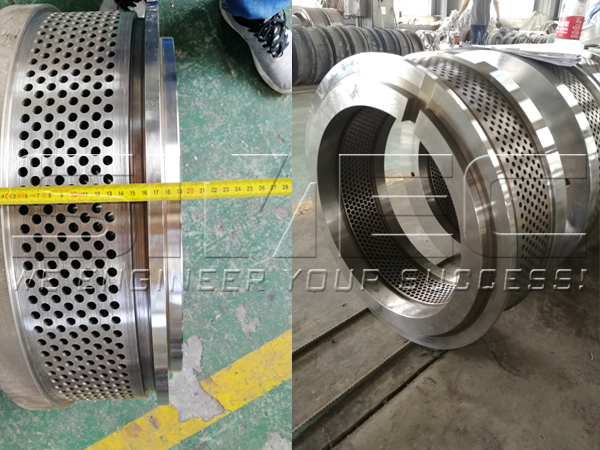

SPM420 Pellet Mill Ring Die

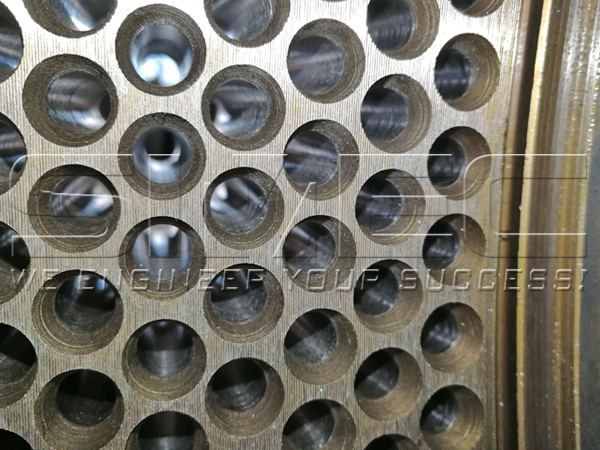

SPM420 Pellet Mill Ring Die Hole

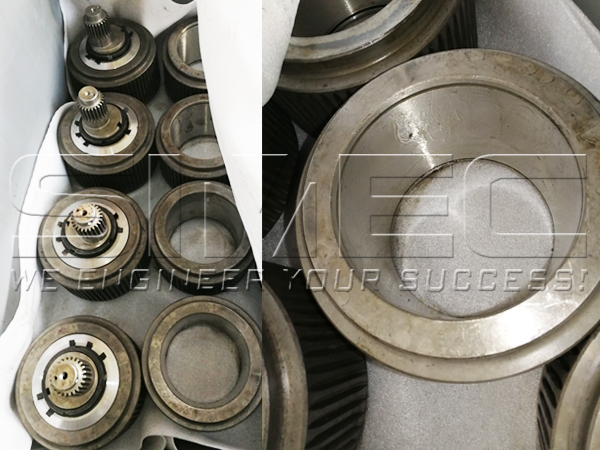

SPM420 Roller and Shell

Screw conveyors, silo components, etc

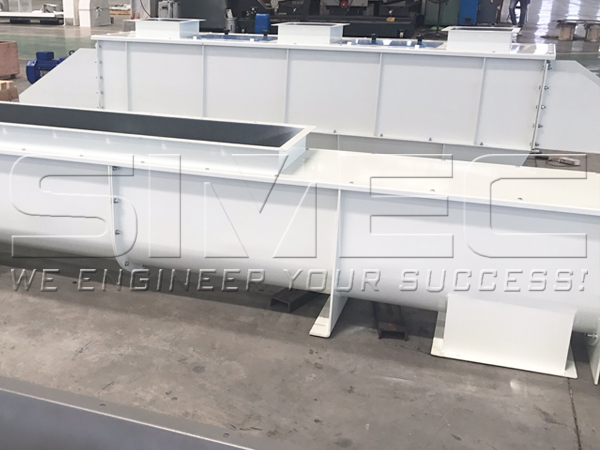

Screw Conveyors

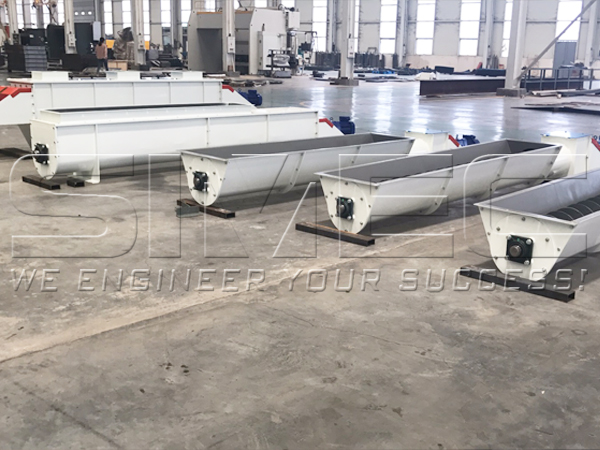

Unloading Augers

Silo Assembly Panel

Control cabinet

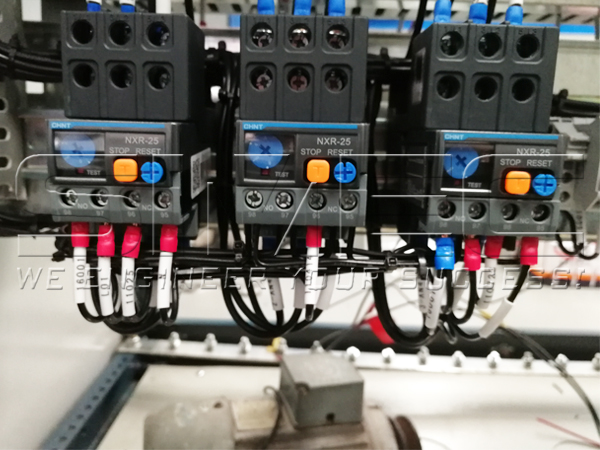

Control Cabinet for Turkey

Manure Plant Control Cabinet Inside View

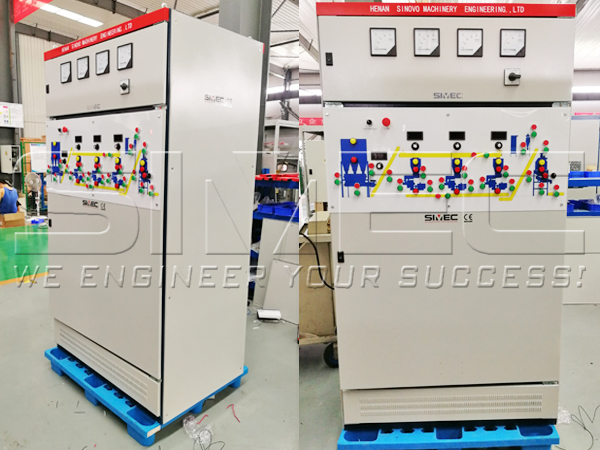

Control Cabinet Outside
