Biomass Pyrolysis Lab Apparatus for Torrefied Pellet Project
Biomass Pyrolysis Laboratory Apparatus is developed to help the clients, who will set up commercial biomass pyrolysis projects, to collect the relevant experimental data for further analysis and research, then improve commercial operation.
The purpose is to conduct torrefaction experiments and make samples of torrefied biomass pellets. The samples will be sent to customers in Europe for co-firing test. This is a very important step before setting up large scale torrefied pellet project.
Realizable Experiments includes:
- Torrefaction and other pyrolysis process under different reaction temperature and material flow rate.
- Collectable experimental samples for further analysis: torrefied solid material; syn-gas before purification; syn-gas after purification; liquid byproduct, such as tar, pyroligneous acid.
- Instant syn-gas volume measurement.

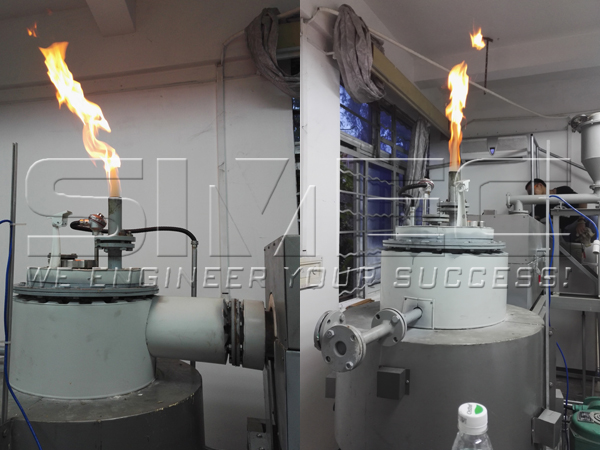

- Experimental study on combustion of syn-gas before and after purification.
- Based on the samples, data, analysis, by scientific calculation, almost all the experimental purposes could be realized to meet the requirements of scientific research work.

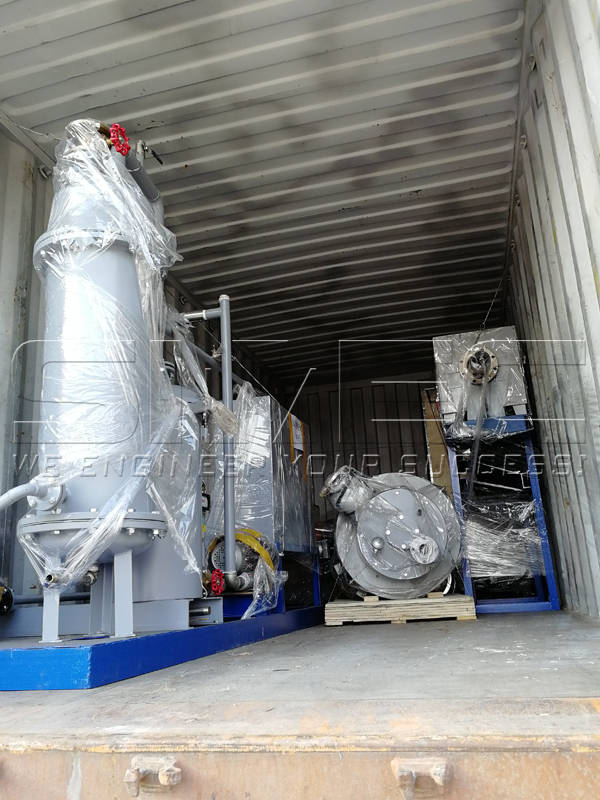

All the cargos were loaded into container at 3rd Jan. 2019.
| PACKING LIST DETAILS | |||||||
| No. | Model | Details |
Weight (t) |
Size (L*W*H) (mm) |
Remarks | ||
| Item | Unit | Qtty | |||||
| SIMEC01 | CF158 | Hammer Mill | Set | 1 | 0.095 | 610*515*570 |
Including: 1 set of motor; 1 set of feeding hopper; 1 piece of tube; 1 set of air bellow; 12 pieces of hammers; 5 pieces of screens (hole diameter 6mm); 1 set of discharging chute; 2 pieces of belts; 1 piece of belt guard; 1 set of frame; 1 set of installation tools and bolts. |

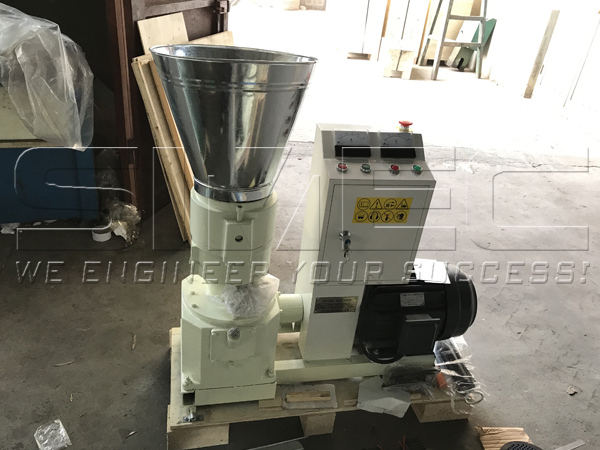

| SIMEC02 | KL200B | Pellet Press | Set | 1 | 0.22 | 1000*430*960 |
Including: 1 set of motor; 1 set of control cabinet; 1 set of feeding hopper; 1 set of discharging chute; 1 set of flat die(hole diameter 6mm); 2 sets of integrated rollers (4 pieces); 1 set of installation tools and bolts. |
| SIMEC03 | BPLA133-1 | Feeding Auger | Piece | 1 | 0.214 | 2088*1900*400 |
Including: 1 set of motor; 1 set of sluice valve; 1 set of hopper; 1 piece of position selector valve. |
| SIMEC04 | BPLA133-2 | Discharging Screw | Piece | 1 | 0.052 | 1500*200*300 | Including: 1 set of motor. |
| SIMEC05 | BPLA133-3 | Pyrolysis Reactor | Piece | 1 | 0.338 | 2500*600*1800 | Including: 1 set of motor. |
| SIMEC06 | BPLA133-4 | First Biochar Tank | Piece | 1 | 0.166 | 1200*1300*800 |
including: 1 set of sluice valve; 1 piece of position selector valve. |

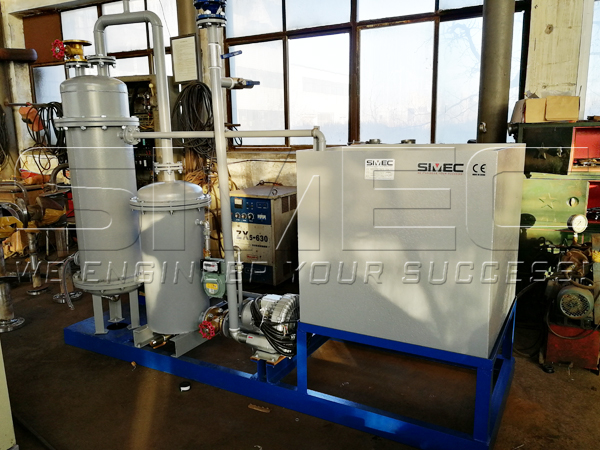

| SIMEC07 | BPLA133-5 | Gas Purification System | Piece | 1 | 0.628 | 2700*900*2200 |
In the water tank there are the following elements: 1. One set of second charcoal case (including: 1 set of installation tools, gasket of various models(DN125 、DN80 DN50 square gasket, thermocouple connecting line), 1 set of connecting blots, 1 hey cutter cabinet, 1 piece of hey cutter cable, 1 piece of air compressor cable, 1 piece of flexible conduit, 1 set of pressure sensor module, 1 piece of pressure sensor connecting line); 2. Two pieces of φ50、φ20 plastic steel wire pipes; 3. Two pieces of flange joints; 4. Reactor and purification unit connecting tube; 5. One set of charcoal discharging screw support; 6. One set of hey cutter accessories: 2 pieces of triangular belts, 1 piece of oil pot, 2 pieces of cutters, 2 pieces of wrenches; 7. One set of air compressor; 8. One piece of φ8 air pipe; 9. Two pieces of sampling port connectors. 10. Gas burner. |
| SIMEC08 | BPLA133-6 | Control Cabinet | Piece | 1 | 0.098 | 800*500*2000 |
1. The key is in the left inner side of cabinet; 2. Packaged in wooden case |

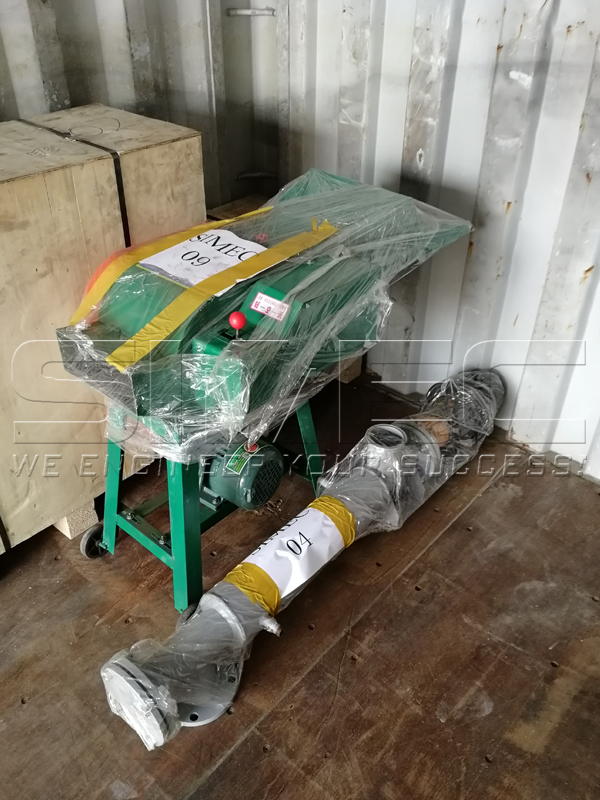

| SIMEC09 | 9zt-0.4 (250) |
Grass Shredder |
Set | 1 | 0.066 | 1100*500*800 |
Including: 1 set of motor; 1 piece of belt guard. |
|
TOTAL AMOUNT |
9 PCS |
1.877 Tons |
All loaded in one 20'GP container. | ||||
