Palm EFB Chopping Machine



With the fast development of the palm oil industrial, throughout Malaysia, Indonesia, Vietnam, South America, Africa and other regions and countries around the world, how to effectively use the massive amount of the byproduct EFB perplex the owners. As the biomass pellet market booming these years, to convert the EFB into biomass pellets have been get the nod by the oil plant owners and the pellet market. But many investors quit the plan helpless, due to the high cost of the pretreatment to the raw material.
With more than 20 years’ experience in the biomass pellet industrial, we have invited the efficient EFB shredding machine, which costs less and operates simply.
The EFB drum crusher is one key machine of our EFB pellet plant with new technology and high processing efficiency. Comparing with the traditional pretreatment to the EFB, our EFB drum crusher can directly shred and crush the fresh EFB with 70% moisture into 20-30mm length fiber without squeezing the liquid out firstly. The output fiber could be easily dried and fine crushed in the following EFB pellet processing, which guarantees the high quality of the final EFB pellets products.

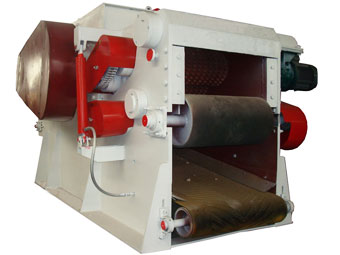

g-series-medium-size-plam-efb-chopping-machine
G Series Medium Size Plam EFB Chopping Machine
efb-chopping-machine
EFB Chopping Machine

Features
1. Easy Installation
The drum crusher can be simply installed on the hardened and flat floor without any foundation to civil work, which can save the installation cost and move the machine conveniently.
2. Widen Feed Inlet
Thanks for the widened feed inlet, the EFB can be fed to the crushing chamber smoothly without blocking and intertwining.
3. High Production Efficiency
With unique designing of the roller and the knife inside of the machine, the lengthened roller, enlarged diameter of the roller and the unique arrangement of the knife, the machine can shred the EFB from massive to short fiber efficiently;
4. Long Serve Life
The machine shell is made from thick and heavy casting carbon steel, which is very strong and bear the running of the machine. We produce the knives and rollers with alloy steel and unique designing, which can shred the EFB efficiently and durably.
5. Safety
Thanks for the appliance of the famous brand electrical apparatus elements and the voltage-reduced starting device in the cabinet, the motor can be protected when it starts.
6. Energy Saving
Comparing with the other EFB shredder, due to the unique designing of the knives and rollers, the EFB can be shredded via a 110kw motor driving instead of a 220kw with the same output capacity.

Data:

Model BX-G318D
Power: 110 KW
Capacity: 13-15 t/h
Size of Feed Inlet: 750*300 mm
Required Size of EFB: 650*280 mm
Speed of Main shaft: 700 rpm
Length of Roller: 780 mm
Diameter of Roller: 850 mm
Numbers of Knives: 5 pcs
Diameter: 3500*2400*1900 mm

palm-efb
Plam EFB

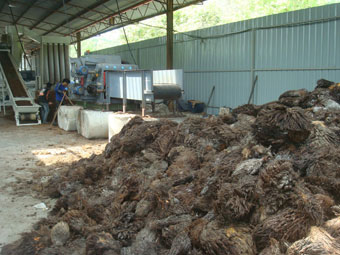

efb-chopping
EFB Chopping

processed-efb
Processed EFB
dry-processed-efb
Dry Processed EFB
