MFSP series wood crusher is the upgraded version of hammer crusher, compared with the former machine, this series have higher performance, higher yield and lower energy consumption.

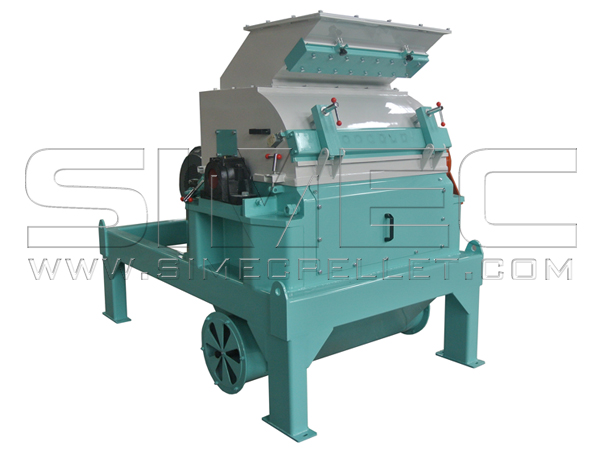

left-front-view-of-wood-crusher-mfsp80-Ⅲ
Wood Crusher MFSP80-III
Introduction:
This series wood crusher can crush variety of crude fiber and bulk materials such as twigs, bark, plant roots, wood chips, garbage and chemical waste. This series wood crusher adopts steel plate welded structure, motor and crusher rotor is mounted on the same base, using a belt drive, rotor dynamic balance test, the feed inlet is at the top of the crusher, and can conveyor with auger, belt conveyor match with the form of feed inlet structure, hammers arranged symmetrically. The machine has a simple structure and durable body, safe, reliable, easy to install and operation and maintenance, small vibration, high productivity.
right-front-view-of-wood-hammer-crusher-mfsp80-Ⅲ
Right Front View of Wood Crusher MFSP80-III

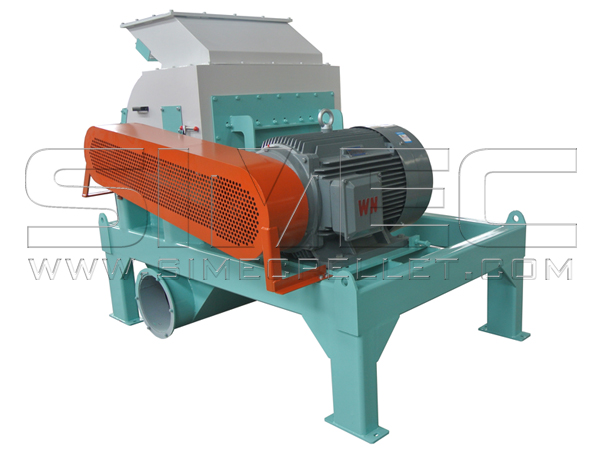

right-rear-view-of-wood-crusher-mfsp80-Ⅲ
Right Rear View of Wood Crusher MFSP80-III

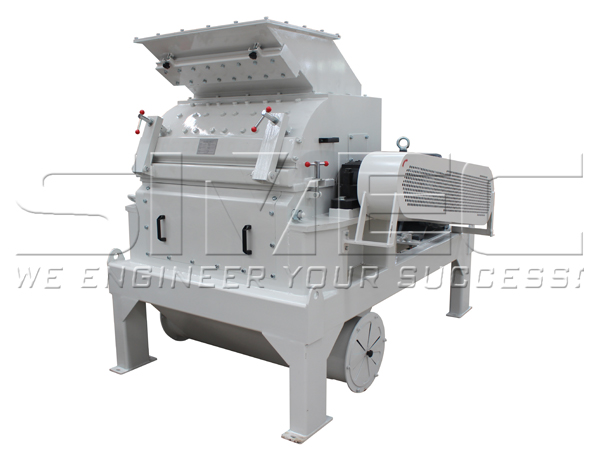

hammer-crusher-mfsp80-iii

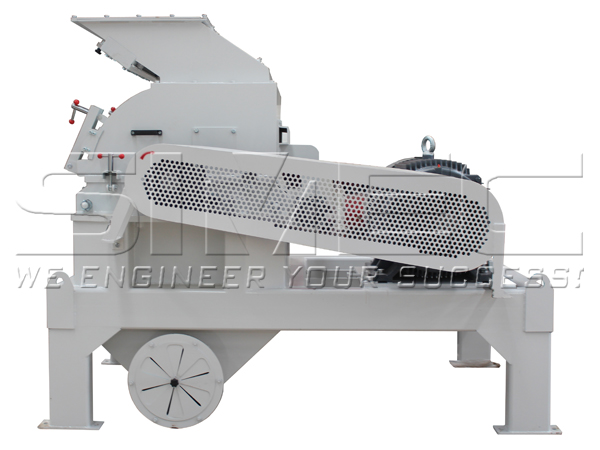

wood-crusher-mfsp80-iii

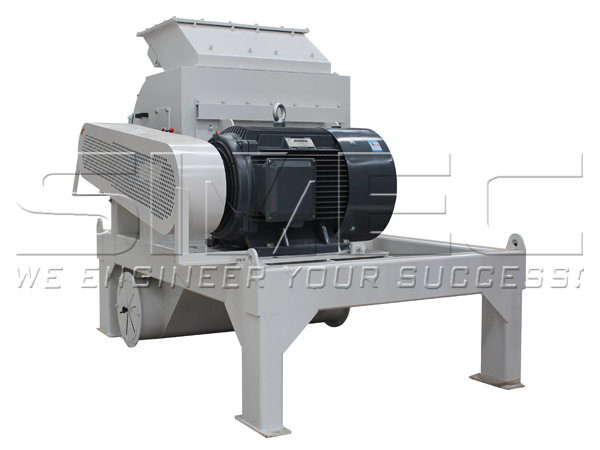

hammer-wood-crusher-mfsp80-iii


Features:
  • High strength 8mm thickness hammer knives, casting blocks fixed inside for material grinding.
  • Specially designed fast open gates to change screen and to inspect inside status.
  • The sieve is composed of several parts. This design increases the life span of sieve, and decrease the cost to change sieve once any part is broken. You don't have to change the entire sieve.
  • Professionally designed material discharging system. Crushed material can be discharged through the screens under the crushing rotor by centrifugal force and pneumatic section.
Photos of Hammer Knives and Screens:

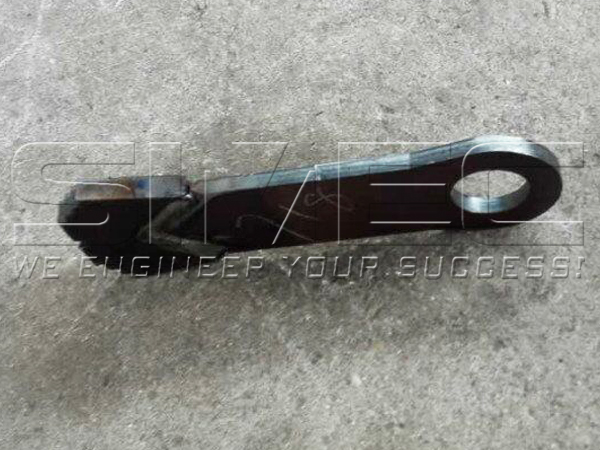

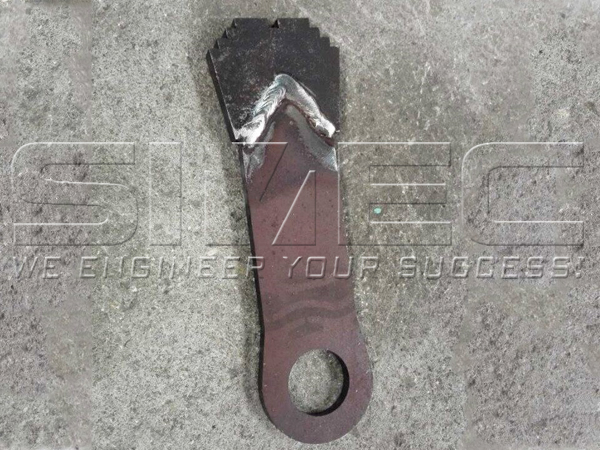

hammer-machine-knife

hammer-mill-knife

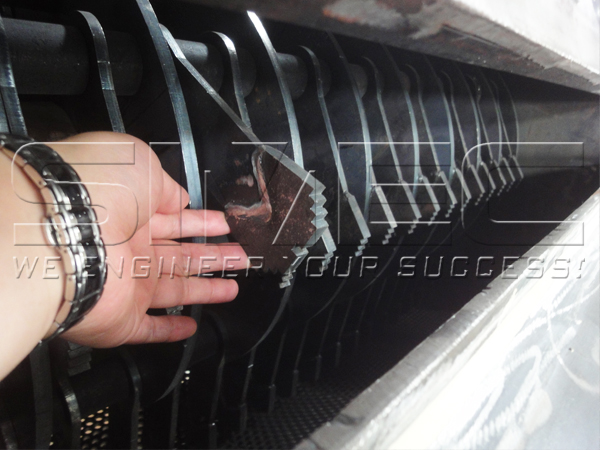

hammer-mill-knives

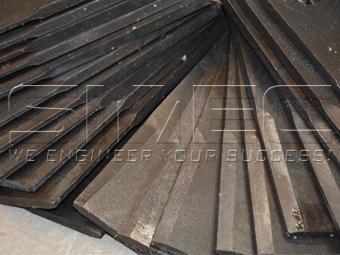

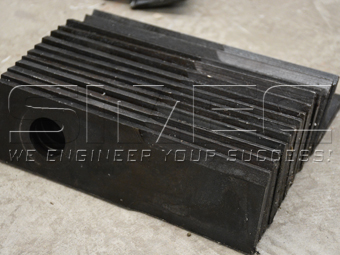

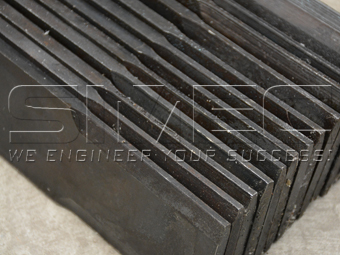

hammer-knives

hammer-knives

hammer-knives

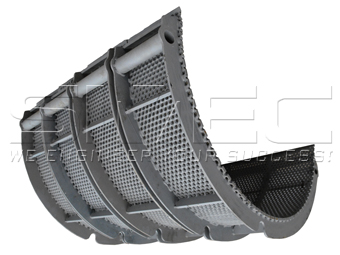

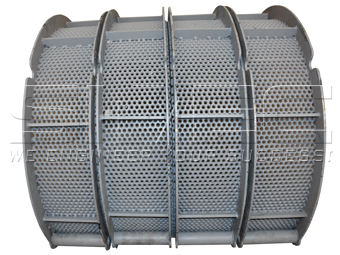

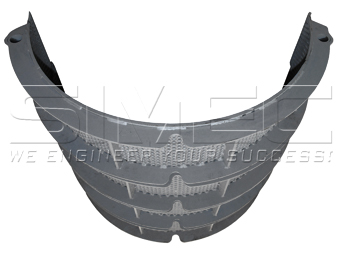

hammer-crusher-screen

hammer-crusher-screen

hammer-crusher-screen





Technical parameters:
Model MFSP80-I MFSP80-II MFSP80-III MFSP80-IV MFSP80-V
Rotor diameter(mm) 800 800 800 800 800
Grinding chamber width(mm) 600 800 1000 1200 1400
Spindle speed(rpm) 2600 2600 2600 2600 2600
Hammer line speed(m/s) 108 108 108 108 108
Hammer number 40 56 72 88 104
Matching power(kw) 22/37 45/55 75/90 110/132 160/200
Bearing type NSK 2317 NSK 2317 NSK 2317 NSK 2317 NSK 2317
Belt type C2997*5 C2997*5 C2997*5 C2997*5 C2997*5
Screen size 200*3 pieces 200*4 pieces 200*5 pieces 200*6 pieces 200*7 pieces
Appearance
Size
Length(mm) 2150 2150 2150 2150 2150
Width(mm) 1130 1300 1500 1770 1970
Height(mm) 1800 1800 1800 1800 1800

Diagrams of Wood Crusher: (Click the Picture to Download the Original Drawing in PDF Format)

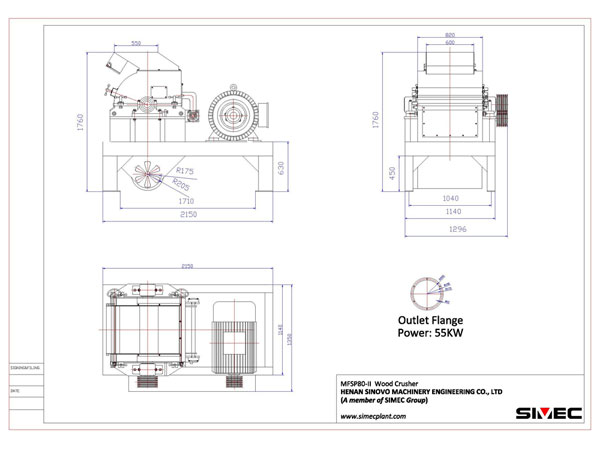

wood-crusher-diagram-mfsp80-Ⅱ
Wood Crusher MFSP80-II Installation Diagram

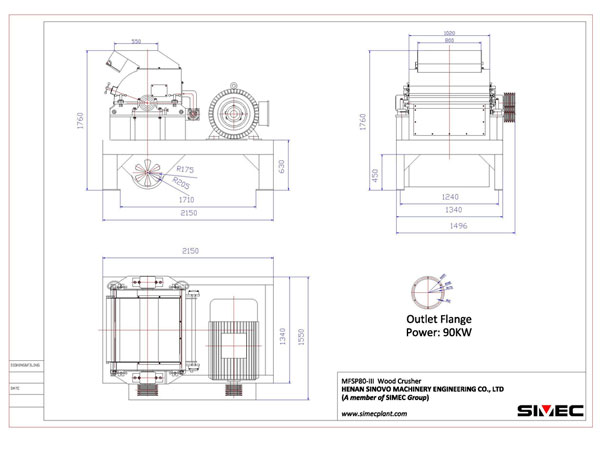

wood-crusher-diagram-mfsp80-III
Wood Crusher MFSP80-III Installation Diagram

Please download the Manual Book to know more details of wood crusher MFSP Series.
WOOD CRUSHER MANUAL DOWNLOAD
