SINOVO MACHINERY ENGINEERING

Size Reduction Equipment

Sawdust Machine

By:Ms Season Tian
Position:Editor
Jul 07, 2015
I.  Introduction:
With application of advanced technology, our sawdust machine can process wood log, tree branch, tree root, bamboo, slab, wood block and any kinds of hard plastic, PVC, paper pipe and chemical material, etc. Characterized with simple operation and maintenance, efficient output, wide range of application and highly automatic, etc, the sawdust machine can pulverize the above raw materials into 3-5 mm fine particle efficiently.

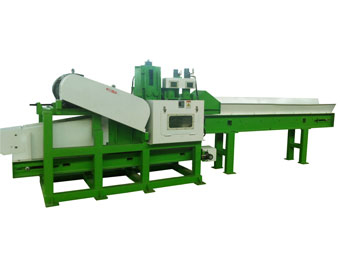

smx-sawdust-machine
SMX Sawdust Machine

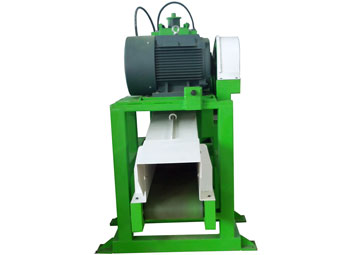

sideview-of-sawdaust-machine
Side View of Sawdust Machine

II.  Technical Data:
Model SMX-210 SMX-350
Main power(KW) 37 132
Capacity(t/h) 2-3 t/h 5-6 t/h
Feeding inlet size(mm) 210x210 350x350
Cutter drum (mm) 420x225 600x380
Cutter size 5*6*45 mm 5*6*45 mm
Voltage 380v/50 HZ 380v/50 HZ
Dimension (mm) 1800x900x1400 3000x1850x1800

III.  Features:
1. Energy saving with hydraulic feeding system;
2. Free operation and maintenance;
3. Low noise;
4. High durability and stable production;
5. High output efficiency with German knives.

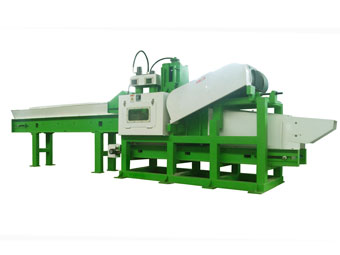

overview-of-sawdust-machine
Overview of Sawdust Machine

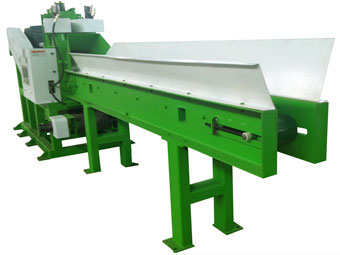

feeding-belt
Feeding Belt

wood-log
Wood Log
sawdust-product
Sawdust Product
