6TPH Wood Pellet Line Container Loading Details
This wood pellet project mainly consists of 9 parts: wood chipping system, chips storage system, crushing system, rotary drying system, pelletizing system, cooling & sieving system, pellet storage system, small bag packing system and bulk loading system.
All of these machines and components are loaded in 11 sets of 40' HQ containers and 1 set of 40' FR containers and will be delivered to Jakarta.
Here are the container loading details of the equipment:
| Container No. | Pieces | Weight (Tons) | Measurement (CBM) | |
| 1#HQ | CBHU9459728 | 5 | 4.766 | 40.548 |
| 2#HQ | CCLU6586267 | 19 | 7.186 | 31.006 |
| 3#HQ | BSIU9324250 | 12 | 7.962 | 21.523 |
| 4#HQ | MAGU5354300 | 7 | 14.83 | 18.787 |
| 5#HQ | CSNU6082583 | 8 | 20.9 | 44.98 |
| 6#HQ | MAGU5156639 | 17 | 12.18 | 32.132 |
| 7#HQ | CCLU7209099 | 8 | 7.55 | 29.854 |
| 8#HQ | TCLU5086617 | 2 | 5.11 | 56.682 |
| 9#HQ | FSCU8835751 | 2 | 6.2 | 44.85 |
| 10#HQ | BMOU5038931 | 3 | 16.985 | 50.37 |
| 11#HQ | FSCU8794101 | 2 | 9.75 | 43.624 |
| 1*40FR | TTNU0705370 | 1 | 29 | 92.51 |
| Total | 86 | 142.419 | 506.866 |

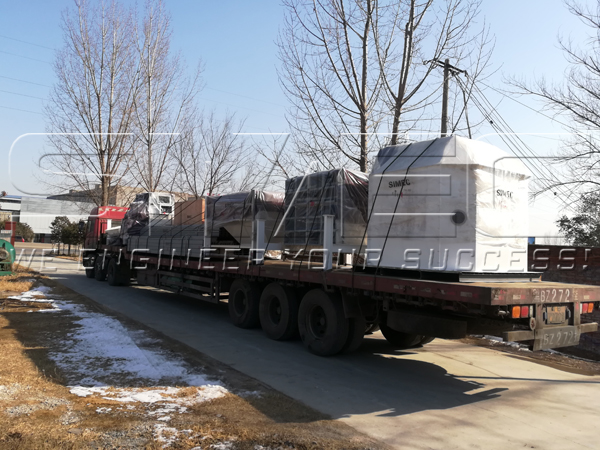

| 1#40HQ | Container Number | CBHU9459728 | ||||
| No. | Item | Qty. | Weight | LxWxH | Forklift tooth deepth | Remarks |
| （t） | (mm) | (mm) | ||||
| 1 | 19 Cooler Upper Part | 1 | 1.31 | 2000X2000X2070 | 2000 | 3 barreals of priming paint, 3 barreals of finishing coat, 1 pc of φ40 magnetic core，(8 pcs of upper leveler including extension bar, 8 pcs of lower leveler, 1 pc of cooler samll feed leveler, 8 pcs of leveler base, 24 pcs of electromagnetic switch including clips, totally two paper boxes), (sealing strip,φ8 air pipes in 1 box), 3 rolls of elevator belt,(standard component, elevator bolt, belt connector totally 6 bags), 3 pcs of φ160 soft pipe, φ500 galvanized iron air pipe 12m, 5 elbows, 5 pcs of bending pipe including hood cover. |
| 2 | 19 Cooler Lower Part | 1 | 1.144 | 2760X2180X1600 | 2180 | Including reducer |
| 3 | vibrating screen MFJZ110X2 | 1 | 0.568 | 2800X2190X1240 | 2190 | Including vibration motor |
| 10 | TGSS25 Scraper Straight Pipe | 1 | 0.804 | 2120X1300X1960 | 2120 | Totally 10 joints, including side connection plate, base connection plate and upper conection plate. |
| 22 | 40/23 Bucket Elevator Straight Pipe | 1 | 0.940 | 2500X2190X1760 | 2190 | 24 joints straight pipes in all，1 pc of 19 cooler support. |
| Total | 5 pieces | 4.766T | 40.548CBM |
| 2#40HQ | Container Number | CCLU6586267 | ||||
| No. | Item | Qty. | Weight | LxWxH | Forklift tooth deepth | Remark |
| （t） | (mm) | (mm) | ||||
| 4 | Pelleting Chamber | 1 | 1.438 | 1520X1500X2020 | 1520 | 2 pcs of pelleting silos, 2 bags of 32 chain, 1 pc of 25 chain, 3 bags of plastic scraper, a batch of wind screen frange, 17 pcs of non-standard bending pipe, 5 pcs of φ219 elbows, 6 pcs of 560 long roller, 1 rolls of stationary type belt, 32 pcs of elevator straight pipe frange, 9 bags of plastic elevator, 32 pcs of φ219 frange, 40 pcs of φ500 frange, bed plate, connect plate, set square totally 66 pcs weight 200kg |
| 5 | End Product Silo | 1 | 0.740 | 1500X1500X2180 | 1500 | 6 pcs of end product silo |
| 6 | φ1200 Cyclone | 1 | 0.706 | 2700X1550X1560 | 1550 | 2 sets of 5L air lock valve, 1 set of 16L air lock valve, 1 set of 3.2A air blower, 1 pc of cyclone cone bucket |
| 11 | TGSS32 Scraper Straight Pipe | 1 | 0.530 | 1920X750X1920 | 1920 | Totally 4 joints, including side connection plate, base connection plate and upper conection plate. |
| 12 | 50/28 Bucket Elevator Straight Pipe | 1 | 0.528 | 2020X1100X1820 | 2020 | 12 joints in all |
| 15 | 50/28 Bucket Elevator Tail | 1 | 0.304 | 1350X740X1470 | 1350 | |
| 16 | 50/28 Bucket Elevator Head | 1 | 0.564 | 1660X1520X1100 | 1520 | Including reducer, 1 pc of 40 permanent magnet barrel |
| 17 | 40/23 Bucket Elevator Head | 1 | 0.382 | 1580X1230X1050 | 1230 | Including reducer, 1 pc of 50/28 feeding hop |
| 23 | TGSS25 Scraper Head | 1 | 0.232 | 1050X780X1020 | 1050 | Including reducer, proximity switch has been installed. |
| 24 | TGSS25 Scraper Head | 1 | 0.232 | 1050X780X1020 | 1050 | Including reducer, proximity switch has been installed. |
| 33 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 34 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 35 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 36 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 37 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 38 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 39 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 40 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| 41 | checkered plate | 1 | 0.170 | 6000X1250X3 | 1250 | |
| Total | 19 pieces | 7.186T | 31.006CBM |

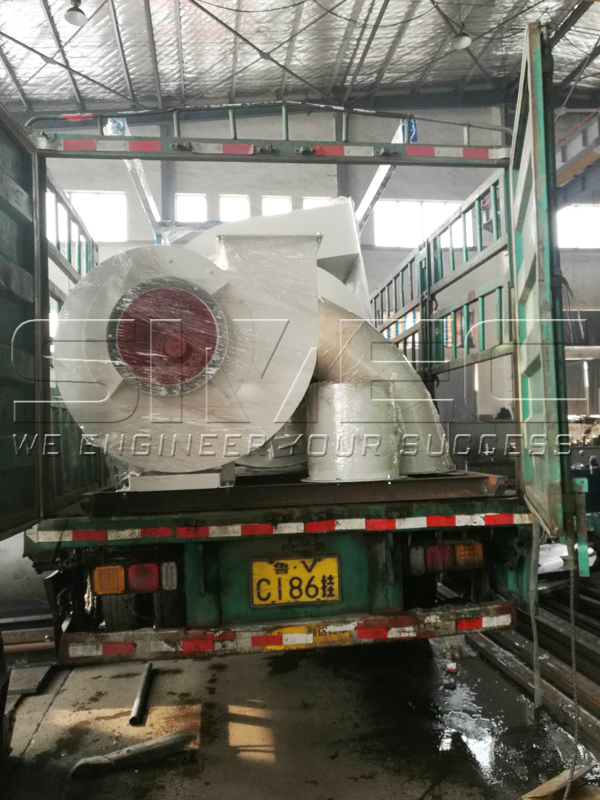

| 3#40HQ | Container Number | BSIU9324250 | ||||
| No. | Item | Qty. | Weight | LxWxH | Forklift tooth deepth | remarks |
| （t） | (mm) | (mm) | ||||
| 8 | Air blower 4-72-5A | 1 | 0.210 | 1100X900X1000 | 900 | |
| 9 | Valve 25X40 | 1 | 0.460 | 1200X1000X1000 | 1000 | Totally 12 sets of air cylinder |
| 13 | TGSS32 Scraper Tail | 1 | 0.264 | 1200X600X1240 | 1200 | 1 joint of straight pipe, including side connection plate, base connection plate and upper conection plate. |
| 14 | TGSS32 Scraper Head | 1 | 0.494 | 1340X1070X1200 | 1340 | Including reducer |
| 18 | 40/23 Bucket Elevator Head | 1 | 0.398 | 1570X1220X1070 | 1220 | Including reducer, φ500 air door |
| 19 | 40/23 Bucket Elevator Tail | 1 | 0.208 | 1200X700X1320 | 1200 | |
| 21 | 40/24 Bucket Elevator Tail | 1 | 0.208 | 1200X700X1320 | 1200 | |
| 25 | stationary type | 1 | 0.530 | 3700X1020X1230 | 1020 | Including reducer, 1 roll of conveyor belt, and 1 machine tail. |
| 26 | stationary type | 1 | 0.340 | 5000X1050X710 | 1050 | Including reducer |
| 27 | Assembly chamber column, shrouding | 1 | 1.800 | 1660X1550X750 | 1550 | 266 pcs |
| 28 | Assembly chamber plate | 1 | 2.880 | 1600X1550X330 | 1600 | 68 pcs |
| 43 | Packing Machine | 1 | 0.170 | 930X820X1750 | 820 | |
| Total | 12 pieces | 7.962T | 21.523CBM |

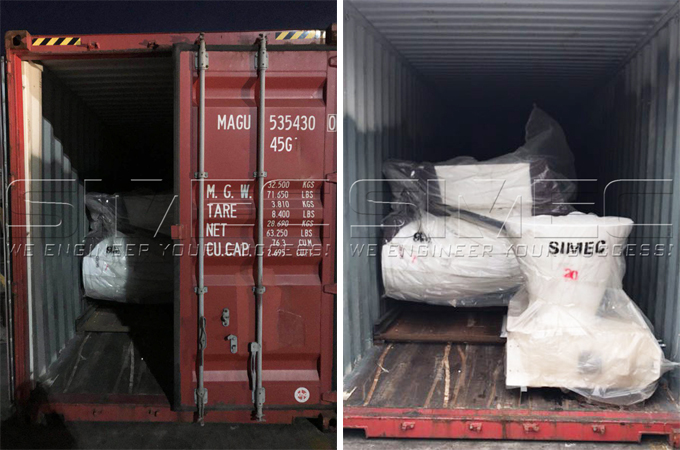

| 4#40HQ | Container Number | MAGU5354300 | ||||
| No. | Item | Qty. | Weight | LxWxH | Forklift tooth deepth | remarks |
| （t） | (mm) | (mm) | ||||
| 7 | φ800 Cyclone | 1 | 0.254 | 1950X1150X1670 | 1150 | 2 pcs of 40/23 Feeding hopper |
| 20 | TGSS25 Scraper Tail | 1 | 0.278 | 1170X1030X1220 | 1170 | 2 sets of TGSS25 scraper tail, 1 pc of 40 permanent magnet barreal feeding hopper |
| 29 | 200 joist steel | 1 | 3.618 | 6000X700X900 | 700 | 3 pcs of φ219 pipes,1.5m φ300 pipes, 21 pcs of joist steel |
| 30 | 100 square tube | 1 | 3.640 | 6000X430X630 | 430 | 19 pcs of 100 square tube、100m 30 slab、45 pcs of 50 angle iron、40 pcs of 6 branched passage |
| 31 | 101 square tube | 1 | 2.830 | 6000X430X510 | 430 | 16 pcs of 100 square tube、45 pcs of 1 cun pipe |
| 32 | 10# U-bar | 1 | 3.390 | 6000X480X480 | 480 | 20 pcs of 70angle iron、37 pcs of 10# U-bar |
| 42 | Packing Machine | 1 | 0.820 | 2470X1230X1800 | 1230 | |
| Total | 7 pieces | 14.83T | 18.787CBM |
| 5#40HQ | Container Number | CSNU6082583 | |||
| No. | Item | Inner Device | Qty. | Dimension | Weight |
| SIMEC⑤ | Hot air stove | single | 1 | 6000x2180*2500mm | 15t |
| SIMEC⑥ | Hot air stove feeder | single | 1 | 6200x900x600mm | 0.4t |
| SIMEC ⑬ | Roller base | single | 1 | 2900x2200x700mm | 2.5t |
| SIMEC ⑭ | Retaining roller base | single | 1 | 2900x2200x700mm | 2.8t |
| 19/20/21 | 90° elbow | single | 3 | 0.1t | |
| 24 | Belt conveyor legs | single (roll) | 2 | 0.1 | |
| Total | 8 pieces | 44.98CBM | 20.9T |
| 6#40HQ | Container Number | MAGU5156639 | |||
| No. | Item | Inner Device | Qty. | Dimension | Weight |
| SIMEC② | Water tank | belt | 1 roll | 1600x1600x2000mm | 2.5t |
| upper roller | 12 | ||||
| lower roller | 2 | ||||
| retaining roller | 4 | ||||
| motor | 6 | ||||
| B type triangular belt 1850m, 8 pcs of air blower cushion | 1 case | ||||
| air blower | 1 | ||||
| air blower reducing | 1 | ||||
| air blower enter reducing | 1 | ||||
| blot+silicon steel sheet 132pcs+belt fastener+soft steel wire | 1 box | ||||
| belt fastener+soft steel wire | 1 | ||||
| air blower dischageing square round pipe | 1 | ||||
| straight pipe 800mm | 1 | ||||
| air lock valve+leveler | 1 | ||||
| coupling | 2 | ||||
| fire grate reducer | 1 | ||||
| belt conveyor upper support 6 pcs | 1 roll | ||||
| belt conveyor lower support | 4 | ||||
| asbestos cord | 1 | ||||
| signal line100m | 1 | ||||
| fire passage diameter 600x500mm | 1 | ||||
| SIMEC③ | front shell cover | single | 1 | 2500x2000x700mm | 0.35t |
| SIMEC④ | rear shell cover | single | 1 | 2500x2000x700mm | 0.36t |
| SIMEC⑦ | stock bin | single | 1 | 1600x1600x1200mm | 0.3t |
| SIMEC⑧ | cyclone dust collector | single | 1 | 3100x1500x600mm | 1t |
| SIMEC⑨ | fire passage | single | 1 | 1200x1200x1300mm | 1.2t |
| SIMEC⑩ | feeding screw conveyor | single | 1 | 3000x400x700mm | 0.8t |
| SIMEC ⑪ | slaag-out machine | single | 1 | 3200x1000x400mm | 1t |
| SIMEC ⑫ | dischaging screw conveyor | single | 1 | 6200x400x600mm | 1.8t |
| SIMEC ⑮ | air blower | single | 1 | 3000x1700x1700mm | 2.5t |
| SIMEC ⑯ | shell cover legs | single(roll) | 4 | 0.04t | |
| 18 | 180° elbow | single | 1 | 0.03t | |
| 22 | cyclone dust collector legs | single(roll) | 4 | 0.05 | |
| 23 | cyclone dust collector legs stull | single(roll) | 4 | 0.05 | |
| 25/26/27 | pipes | single | 3 | 0.2 | |
| total | 17 pieces | 32.132CBM | 12.18T |

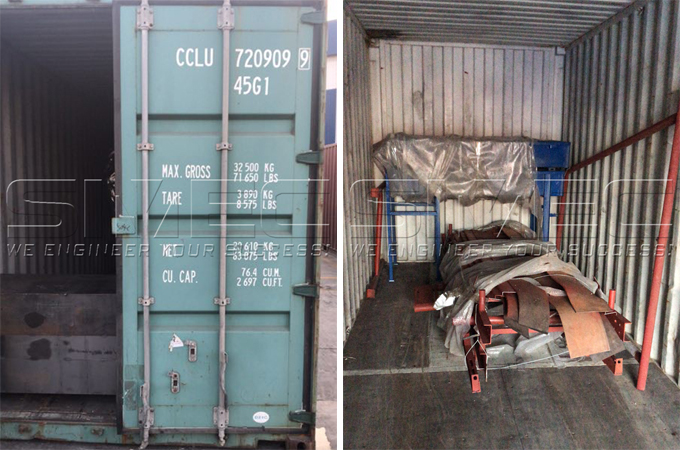

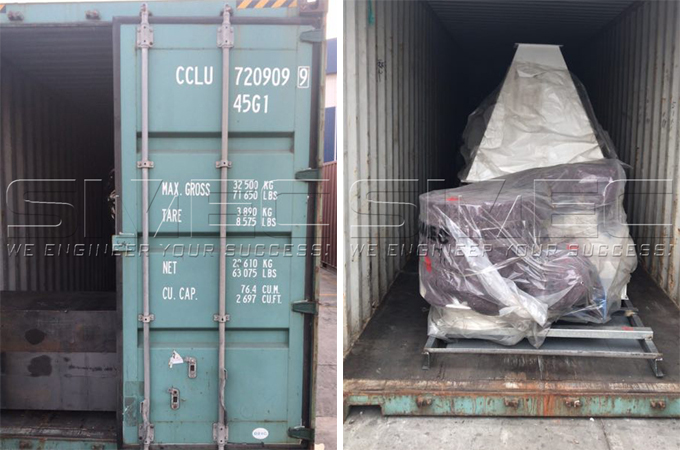

| 7#40HQ | Container Number | CCLU7209099 | ||
| No. | Item | Dimension | Weight | Bulk |
|
SIMEC LG-01 |
electric control cabinet | 700*400*1300 | 100 | 0.364 |
|
SIMEC LG-02 |
main machine | 4000*2300*2200 | 5580 | 20.24 |
|
SIMEC LG-03 |
front conveyor | 2100*900*1600 | 300 | 3.024 |
|
SIMEC LG-04 |
rear conveyor | 4200*1400*800 | 400 | 4.704 |
|
SIMEC LG-05 |
spare parts | 1500*800*800 | 800 | 0.96 |
|
SIMEC LG-06 |
feeding belt | 680*500*500 | 120 | 0.17 |
|
SIMEC LG-07 |
dischaging belt | 800*700*700 | 200 | 0.392 |
|
SIMEC LG-08 |
dischaging belt support | H:3m*L:2.5m | 50 | |
| Total | 8 pieces | 7.55T | 29.854CBM |

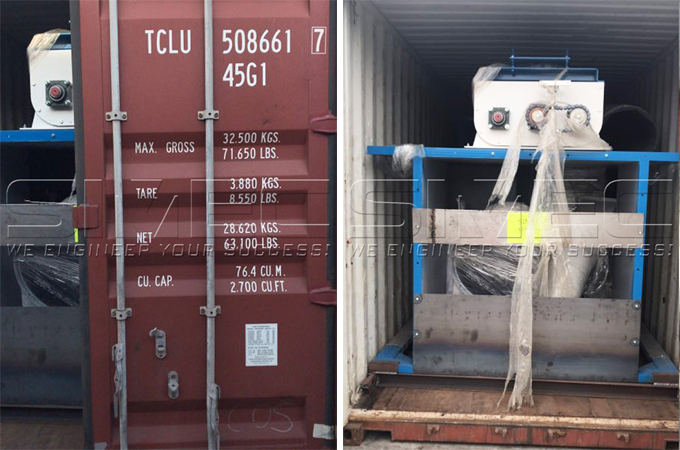

| 8#40HQ | Container Number | TCLU5086617 | ||
| No. | Item | Dimension(m) |
Weight (kg) |
Bulk |
|
SIMEC HM-02 |
simple pulse etc. | 5*2.28*2.43 | 2100 | 27.702 |
|
SIMEC HM-03 |
cyclone,pipes etc. | 6*2.1*2.3 | 3010 | 28.98 |
| Total | 2 pieces | 5.11T | 56.682CBM |
| 9#40HQ | Container Number | FSCU8835751 | ||
| No. | Item | Dimension（M) | Weight (KG) | Bulk |
|
SIMEC DR-01 |
Conveyor | 6x2.15x2.5 | 5000 | 32.25 |
|
SIMEC DR-02 |
triaxial screw conveyor | 2.8x1.8x2.5 | 1200 | 12.6 |
| Total | 2 pieces | 6.2T | 44.85CBM |

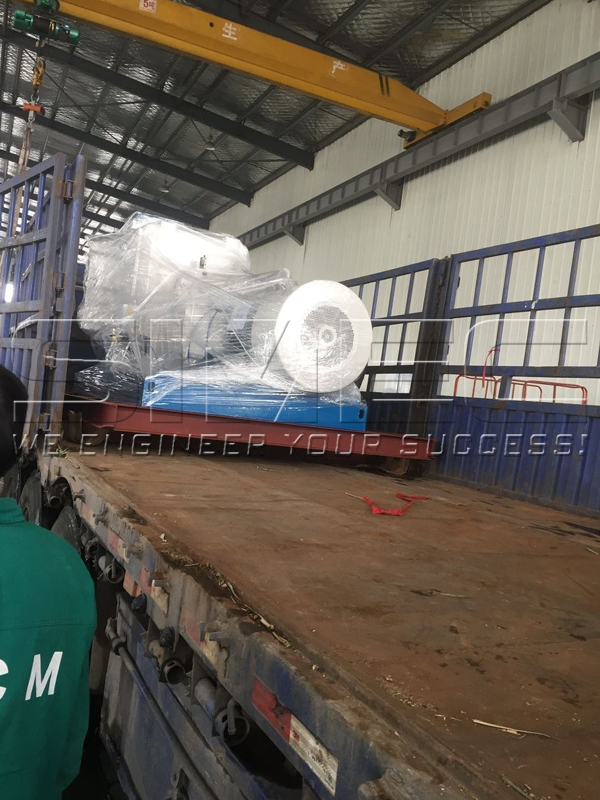

| 10#40HQ | Container Number | BMOU5038931 | ||
| No. | Item | Dimension（M) | Weight (KG) | Bulk |
|
SIMEC PM-01 |
Pellet Machine | 4.1x2.3x2.1 | 7675 | 19.803 |
|
SIMEC PM-02 |
Pellet Machine | 4.1x2.3x2.1 | 7675 | 19.803 |
|
SIMEC PM-03 |
2 sets of feeder，1 iron case (compressor gun, tools, shear pin） | 3.6x2.3x1.3 | 1635 | 10.764 |
| Total | 3 pieces | 16.985T | 50.37CBM |

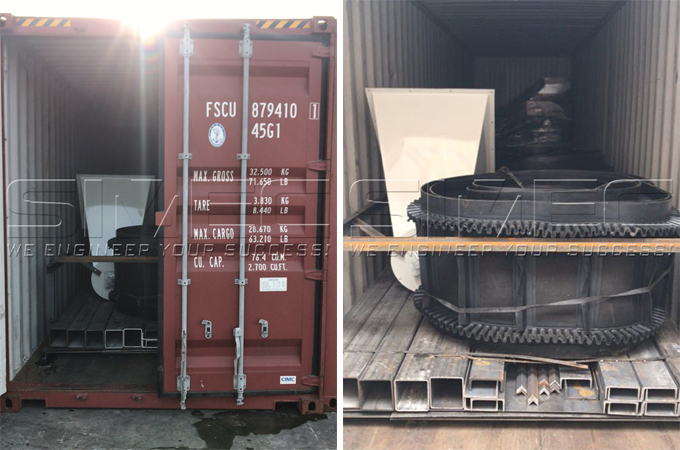

| 11#40HQ | Container Number | FSCU8794101 | ||
| No. | Item | Dimension（M) | Weight(KG) | Bulk |
|
SIMEC HM-01 |
Hammer crusher FSP80-V/160KW-4 class | 2.3*2.3*2.15 | 3250 | 11.3735 |
|
SIMEC DR-03 |
black sideway conveyor belt，feeding screw conveyor etc. | 6x2.15x2.5 | 6500 | 32.25 |
| Total | 2 pieces | 9.75T | 43.624CBM |
| 1*40FR | Container Number | TTNU0705370 | |||
| No. | Item | Inner Device | Qty. | Dimension（M) | Weight |
| SIMEC① | Main Drum | None | 1 | 2900*2900*11000 | 29t |
| Total | 1 piece | 92.51CBM | 29T |
Photos of Container Loading:
Loading Video:
