Report of Palm Leaves and Palm Trunks Shredding Test

By:Ms Season Tian
Position:Editor
Feb 01, 2018
SIMEC is working on a palm leaves and palm trunks pellet project in Cyprus. Our design is to process both palm leaves and trunks at the same time. So the loader just load all raw materials into material receiving inlet. Since palm leaves and trunks have quite different sizes, hardness and shapes, the shredding and crushing system will be very important. It must be guaranteed that both types of raw materials can be crushed to be small particles meanwhile. So the crushed material can be further dried and pelletized.
To make the test and improve our design, we imported 100Kg palm leaves and trunks from Cyprus.
raw-material-palm-leaves
Raw Material Palm Leaves

raw-material-palm-trunk
Raw Material Palm Trunk


The palm trunk is the smooth surface species without fiber around, moisture content is about 40-50%, palm leaves are green and made up of several smaller leaves that are attached to the spine.

Our test includes two steps:
1.Use Solid Waste Shredder to shred palm leaves and trunks into smaller pieces.
Shredder SD1500, our sample test machine, has quite thick knives. So the shredded material is big pieces. Actually the sizes of shredded material can be much smaller by adjusting design of knives and teeth. Shredded size could be customized as per clients’ requirements.
double-shaft-shredder
SIMEC Double Shaft Shredder SD1500

palm-leaves-and-trunk-being-shredded
Palm Leaves and Palm Trunks being Shredded

2.Use Hammer Mill to crush shredded palm leaves and trunks into powder which is suitable to be further dried and pelletized.
SIMEC has hammer mill which is specially designed to crush green biomass. Even if moisture content is high, our hammer mill can still crush the biomass material into very small particles.
In the test, moisture content of palm leaves and palm trunks is around 45%.
palm-leaves-and-trunk-crusher

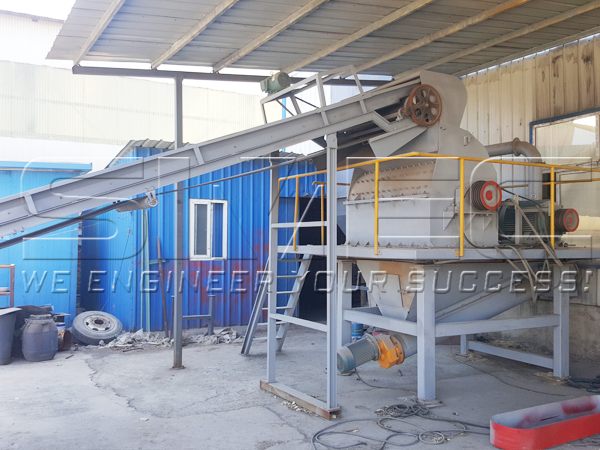

Hammer Crusher

palm-leaves-and-trunk-being-crushed
Palm Leaves and Palm Trunks being Crushed



Result of our test is very successful. Crushed material is small enough for dryer and pellet mill.
Please watch the test video to get more information:

If you also need to shred and crush palm leaves and palm trunks, please contact SIMEC for further assistance. Our email is info@simecpellet.com
