Renewable Clean Energy-Biofuel Pellet

By:Ms Season Tian
Position:Editor
Feb 01, 2018
Biofuel
      Biofuel generally refers to solid, liquid or gas fuel made of or extractive from biomass, it can replace the gasoline and diesel extract from the petroleum, is an significant trend to develop and utilize the renewable resource. What is called biomass refers to the various kinds of organism produced by the photosynthesis of atmosphere, water and soil, all of the animate growing organic substance can be biomass, including plants, animals and microorganism. Different from the traditional fuel such as petroleum, coal and nuclear energy, this rising fuel is renewable.
      SIMEC has been working on the R&D and manufacturing of biofuel equipment for long term, main products including equipment to make pellets from wood, palm EFB, etc. We can supply wood pellets, palm EFB pellets in large quantity from our customers who adopts SIMEC technology. Both the quality and quantity can be guaranteed.

Wood Pellet
      Wood pellet is the solid fuel that made from pinewood, China fir wood, birch wood, poplar wood, fruitwood, straw and bamboo etc. The raw materials are compressed by high pressure low temperature without any chemical addition, through professional machine and special technology.

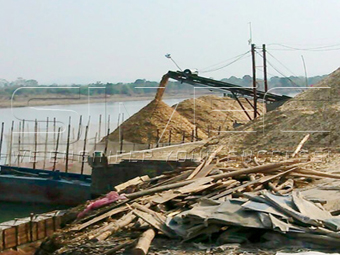

renewable-clear-energy-biofuel-pellet-1

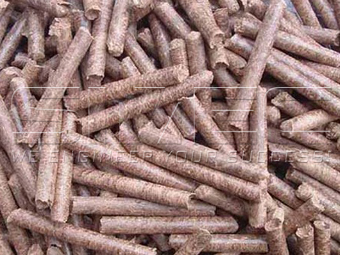

renewable-clear-energy-biofuel-pellet-2
Main Applications
  • Civil warming and living energy: high combustion efficiency, easy to be stored.
  • Biomass industrial boiler: replacing the coal to be the main fuel for industrial boiler, solve the problem of environment pollution.
  • Generate electricity: can used as thermal power generation fuel.
Product Specifications:
Diameter: 6-8mm
Length: 10 ~ 30mm
Moisture: ≤8.9%
Density: ≥1.1kg / m3
Ash: ≤2%
Sulfur: ≤0.05%
Calorific value: 3800kcal / kg ~ 4600kcal / kg

PKS
      Palm kernel shell (PKS) is the shell of palm kernel that extract from the palm fruit before refining the oil, it has higher caloric value than other biomass while burning, and the chemical characteristics can reduce the greenhouse gas emission.
renewable-clear-energy-biofuel-pellet-3
renewable-clear-energy-biofuel-pellet-4

Advantages and Applications
  1. Replace the waste sawdust to make biofuel, less investment, shorter construction cycle.
  2. Imported PKS can be mixed with coal to reduce the coal consumption as well as the carbon emission, especially suitable for the industries that use coal as the main fuel such as cement and electricity generating.
  3. PKS have superior characteristics than other biomass pellet fuel, the natural density can reach to 1:1, small in size and light in weight, not easily crumbled, more convenient to be stored and transported.
  4. As renewable clear energy, PKS play up to the trend of global environment sustainable development.
  5. High-performance active carbon that developed by PKS apply to recovered solvent, clean air and water, Food decolorizing refine, catalyst support and so on.
Product Specifications:
Size: +/- 5mm to 20mm
Ash: <3%
Sulfur: ≤0.1%
Moisture: ≤15%
Calorific value: 4000-4600 Kcal / Kg

PKS Pellet
      PKS pellet is the solid fuel that made from palm kernel shell. The raw material is compressed by high pressure low temperature without any chemical addition, through professional machine and special technology.
renewable-clear-energy-biofuel-pellet-5
renewable-clear-energy-biofuel-pellet-6

Product Specifications:
Diameter: 6mm ~ 8mm
Ash: <3%
Sulfur: ≤0.1%
Moisture: ≤10%
Calorific value: 4200-4600 Kcal / Kg

Palm EFB Pellet
      Palm fruits separate from the stem when they are mature, leaving the EFB as waste. EFB have the features of low lignin content, high fiber and cellulose content, the performance is similar to broad leaf wood, the amount is plenty and stable. Solid fuel made from EFB are called palm EFB pellet.
renewable-clear-energy-biofuel-pellet-7
renewable-clear-energy-biofuel-pellet-8

Product Specifications:
Diameter: 6mm ~ 8mm
Ash: <3%
Sulfur; ≤0.1%
Water; ≤8.8%
Calorific value: 4200-4600 Kcal / Kg
